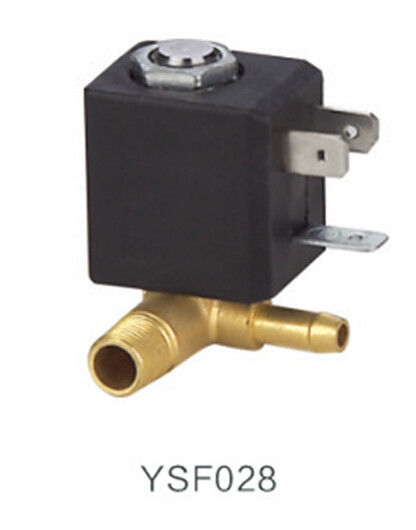

Brass 2 Way Electric Iron Coffee Maker Solenoid Valve Direct Acting 220VAC

Brass 2 Way Electric Iron Coffee Maker Solenoid Valve Direct Acting 220VAC
Brass 2 Way Electric Iron Coffee Maker Solenoid Valve Direct Acting 220VAC

Large Image :  Brass 2 Way Electric Iron Coffee Maker Solenoid Valve Direct Acting 220VAC

Product Details:
Place of Origin: China
Brand Name: Round Star
Certification: CE/ROHS/TUV/FDA
Model Number: YSF028
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: negotiation
Packaging Details: exporting condition
Delivery Time: 1 working days after received your payment
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 10,000pcs per month
Detailed Product Description
Working Medium: WATER Medium Temperature: -10 ~ 120℃
Working Pressure: 0-8bar Valvebody Material: Brass
Sealing Material: Viton Interface: ZG Thread
Working Voltage: 220V
High Light:

3 way solenoid valve

,

liquid solenoid valve

YSF028 brass 2 - way electric iron coffee maker solenoid valve direct acting ZG1 / 8 " DN2 MM 220V 230V 240V


We are professional manufacturer of solenoid valve. The company set the development, production and sales, is a solenoid valve leading products, solenoid valves, pneumatic valves, solenoids and other fluid control components development and production as one of professional manufacturers. Specializing in the production fountains electromagnetic valve, water solenoid valve, gas solenoid valve, steam solenoid valves, pilot solenoid valve, diaphragm-type solenoid valves, gas solenoid valve.

Motion Pattern: pilot-diaphragm type
pattern Normally closed, self-holding type (pulse voltage)
Work pressure 0-10bar (0-0.5bar)
Connection pipe 1/8NPT
Orifice Size DN1.5~3mm
Medium air . Water
Valve body Brass
Fluid temperature 0-160deg
Ambient temperature 0-140
voltage AC230V,AC220V,AC110V DC12V,DC24V
Supply voltage
fluctuation range ±10%
Insulation resistance DC500V Megohmmeter last 1min Insulation resistance 100M
Water pressure 0.02Mpa
Leakage 0.1mL/min Mpa,Leakage 0mL/min
Working pressure 0 -12bar
reliability Power for more than 12 hours, not short-circuit. Stuck
Protection Class IP00
Insulation Class H


YSF-series solenoid valve specification table

ModelInterface size

Orifice size
(mm)

Cv


working pressure(bar)valvebody materialnote

weight
(Kg)

steamliquid,air,water
C220VDC24VC220VDC24V
YSF-022ZG 1/8"20.200~60~60~80~8brassCannula φ6mm0.1
YSF-02320.200~60~60~80~8
YSF-024G1/8"1.50.090~60~60~100~10


brass



 0.13
2.00.200~60~60~80~8
2.50.250~30~30~50~5
YSF-024JG1/8"1.50.090~60~60~100~10SS316 0.13
2.00.200~60~60~80~8
2.50.250~30~30~50~5
YSF-025G1/8"1.50.090~60~60~100~10


brass



3-way NO:
“1”: inlet
NO:cannula φ6

0.13
2.00.200~60~60~80~8
2.50.250~30~30~50~5
YSF-025JG1/8"1.50.090~60~60~100~10SS316

3-way NO:
“1”inlet
NO:cannula φ6

0.13
2.00.200~60~60~80~8
2.50.250~30~30~50~5
YSF-026G1/8"2.00.200~60~60~80~8brass 0.13
YSF-0272.00.200~60~60~80~80.12
YSF-028ZG 1/8"2.00.200~60~60~80~8Cannula φ6mm0.1


Brass 2 Way Electric Iron Coffee Maker Solenoid Valve Direct Acting 220VAC 0
Brass 2 Way Electric Iron Coffee Maker Solenoid Valve Direct Acting 220VAC 1
