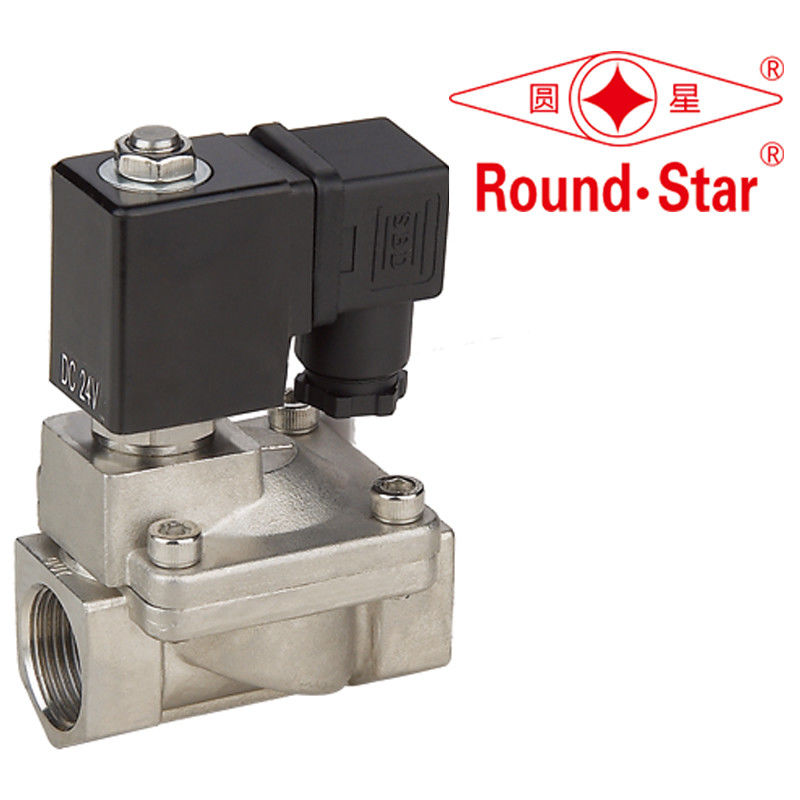

Miniature 1/2 Inch Latching Solenoid Water Valve Stainless Steel 24VDC

Miniature 1/2 Inch Latching Solenoid Water Valve Stainless Steel 24VDC
Miniature 1/2 Inch Latching Solenoid Water Valve Stainless Steel 24VDC Miniature 1/2 Inch Latching Solenoid Water Valve Stainless Steel 24VDC Miniature 1/2 Inch Latching Solenoid Water Valve Stainless Steel 24VDC Miniature 1/2 Inch Latching Solenoid Water Valve Stainless Steel 24VDC Miniature 1/2 Inch Latching Solenoid Water Valve Stainless Steel 24VDC

Large Image :  Miniature 1/2 Inch Latching Solenoid Water Valve Stainless Steel 24VDC

Product Details:
Place of Origin: China
Brand Name: Round Star
Certification: CE/ROHS/TUV/FDA
Model Number: YSZ
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: exporting condition
Delivery Time: 10 working days after received your payment
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 2,000pcs per month
Detailed Product Description
Working Medium: Gas、air、light Oil Medium Temperature: -5 ~ 80℃
Working Pressure: 0.3~16bar Valvebody Material: SS304
Sealing Material: VITON Interface: G Thread
Working Voltage: DC12V 24V 220V 230V 240V
High Light:

latching solenoid water valve

,

latch solenoid valve

gas bistable latching solenoid valve one inch 12V 24V 220V 230V 240V



working medium:liquid,water,air,light oil(viscosity≤20cst)

medium temperature:-5 ~ 80℃

working pressure:0.3~16bar (details see specification table)

working type:DN1.5~4 direct acting DN15~50 pilot operated

valvebody material: brass SS316 PA66

sealing material:NBR(-5~80℃)

interface:G thread NPT thread

working voltage:DC6V DC9V DC12V DC24V

4W 6W 12W IP65 H degree

Options:

sealing material:EPDM(-10~130℃) VITON(-10~120℃)



Structural features:
Action responsive; emissions from large
Body hot forging molding process, appearance
With original sealing material, ten times the life of similar products
CNC machining, to ensure the accuracy and reliability of the solenoid valve
Authoritarian coil, and a structured way of cooling, easily burned;
Stop operation for a long time to restart, the same operation is sensitive;



YSZ-series pilot operated solenoid valve specification table



model

orifice size

( mm )

Interface size Cv working pressure(bar)

length×width×height

( mm )

weight(Kg)
air Water liquid brass SS PA66
YSZ - 15 14 1/2" 3.5 0.3~16 0.3~12 66×48×112 0.7 0.6
YSZ - 20 20 3/4" 7.6 0.3~16 0.3~12 75×58×118 0.8 0.7
YSZ - 25 25 1" 12 0.3~16 0.3~12 96×69×125 1.3 1.2
YSZ - 32 32 11/4" 22 0.3~16 0.3~10 131×96×125 2.8 2.8
YSZ - 40 40 11/2" 30 0.3~16 0.3~10 131×96×150 2.6 2.6
YSZ - 50 50 2" 48 0.3~16 0.3~10 168×128×165 3.9 3.6
YSZ–15SL 15 1/2" 3.5 0.3~7 0.3~7 85×73×126     0.6
YSZ–20SL 20 3/4" 7.6 0.3~7 0.3~7 90×73×128     0.6
YSZ–25SL 25 1" 12 0.3~7 0.3~7 125×90×148     0.6
YSZ–32SL 32 11/4" 22 0.3~7 0.3~7 150×128×173     0.8
YSZ–40SL 40 11/2" 30 0.3~7 0.3~7 152×128×176     0.9
YSZ–50SL 50 2" 48 0.3~7 0.3~7 170×140×190     1.1







Miniature 1/2 Inch Latching Solenoid Water Valve Stainless Steel 24VDC 0

Miniature 1/2 Inch Latching Solenoid Water Valve Stainless Steel 24VDC 1

Miniature 1/2 Inch Latching Solenoid Water Valve Stainless Steel 24VDC 2

Miniature 1/2 Inch Latching Solenoid Water Valve Stainless Steel 24VDC 3
