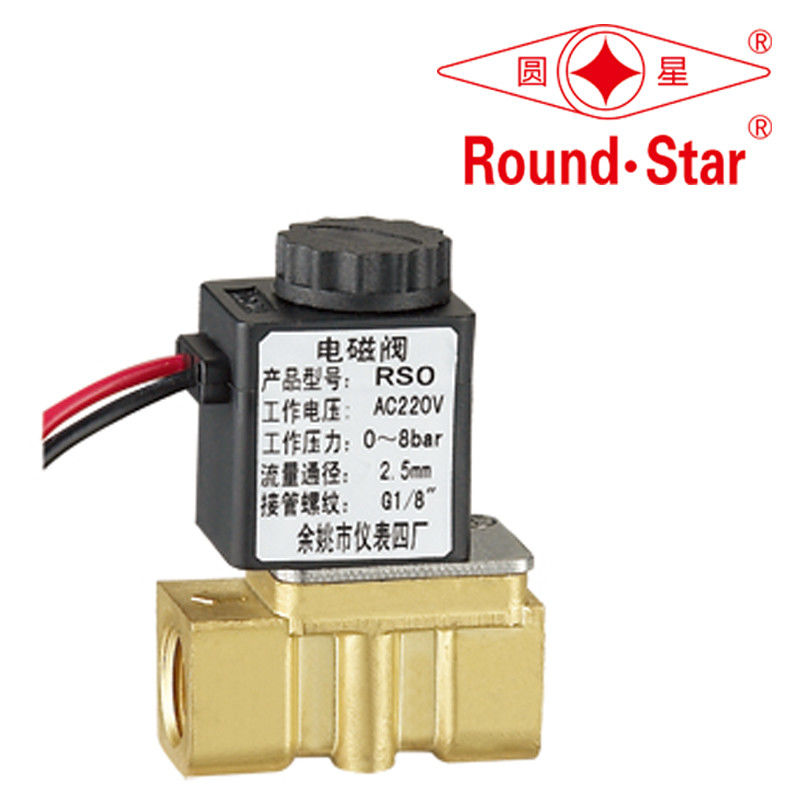

Miniature Solenoid Valve Two Way , 1/4 " Micro Solenoid Valves Normally Closed

Miniature Solenoid Valve Two Way , 1/4 "  Micro Solenoid Valves Normally Closed
Miniature Solenoid Valve Two Way , 1/4 "  Micro Solenoid Valves Normally Closed

Large Image :  Miniature Solenoid Valve Two Way , 1/4 " Micro Solenoid Valves Normally Closed

Product Details:
Place of Origin: China
Brand Name: Round Star
Certification: CE/ROHS/TUV/FDA
Model Number: RSO
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: exporting condition
Delivery Time: 1 working days after received your payment
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 5,000pcs per month
Detailed Product Description
Working Medium: Liquid Medium Temperature: -5 ~ 80℃
Working Pressure: 0-8bar Valvebody Material: Brass
Sealing Material: NBR Interface: NPT Thread
Working Voltage: 24V
High Light:

small solenoid valve

,

miniature solenoid valves

RSO brass 2-way mini solenoid valve direct acting normally closed NC 1 / 8 " - 1 / 4 " DC24V 12V



Features



Small size ; exquisite type ; zero- pressure start , switch quickly , sealing ; authoritarian coil , easily destroyed ; suitable for small-caliber , low pressure piping systems.



Miniature Solenoid Valve Two Way , 1/4 "  Micro Solenoid Valves Normally Closed 0

RS0-SL RSO V2A RSK-series solenoid valve specification table

model interface size

orifice size

(mm)

Cv



working pressure(bar) power valvebody material

weight

(Kg)

AC220 DC24V AC220V DC24V
RSO-SL 1/8" 1/4" 2.5 0.2 0~8 0~8 7VA 6W PP(black) 0.12
RSO 1/8" 1/4" 2.5 0.2 0~8 0~8 7VA 6W brass 0.2
V2A 1/4" 3.0 0.25 0~10 0~8 10VA 8W PA66(black) 0.2
RSK 1/8" 1.5 0.09 0~14 0~12 15VA 9W brass 0.17



Miniature Solenoid Valve Two Way , 1/4 "  Micro Solenoid Valves Normally Closed 1
