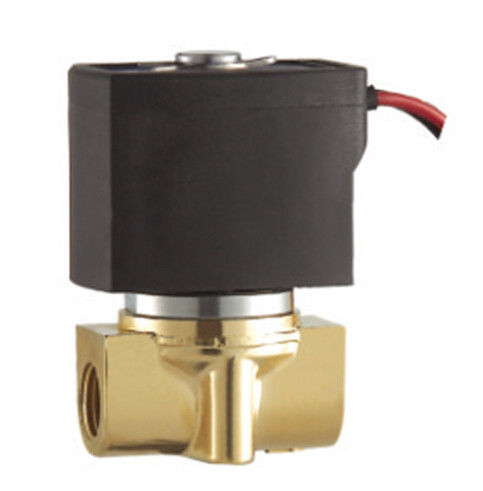

Normally Closed Micro Solenoid Valves Low Power Miniature Pneumatic Solenoid Valve

Normally Closed Micro Solenoid Valves Low Power Miniature Pneumatic Solenoid Valve
Normally Closed Micro Solenoid Valves Low Power Miniature Pneumatic Solenoid Valve Normally Closed Micro Solenoid Valves Low Power Miniature Pneumatic Solenoid Valve

Large Image :  Normally Closed Micro Solenoid Valves Low Power Miniature Pneumatic Solenoid Valve

Product Details:
Place of Origin: China
Brand Name: Round Star
Certification: CE/ROHS/TUV/FDA
Model Number: RSSM
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: exporting condition
Delivery Time: 3 working days after received your payment
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 5,000pcs per month
Detailed Product Description
Working Medium: Water Medium Temperature: -5 ~ 80℃
Working Pressure: 0-6bar Valvebody Material: SS316
Sealing Material: NBR Interface: NPT Thread
Working Voltage: 24V
High Light:

micro solenoid valve

,

miniature solenoid valves

Brass miniature solenoid valve direct acting normally closed NC 1 / 8 " - 1 / 4 " DC24V 12V



Specifications:
DN6 ~ DN1000
Body material:
Steel body, stainless steel (steel body can not be used in corrosive fluid)
Pressure range
0.01 ~ 6.4MPa; 0.01 ~ 1.6MPa
Medium:
Water, gas, oil, steam, gas, corrosive fluids
temperature range:
-200 ~ + 300 ℃
Medium viscosity:
Less than 50C St (greater than to be customized)
Protection performance:
Waterproof, explosion-proof (Exd IICT5), preservative
Wiring:
Terminal Block Type; lead type, male
control method:
Normally open, normally closed
voltage:
DC12 ~ 127V; AC36 ~ 380V
Connection:
Internal thread, flange (male and special interfaces or add custom adapter)





Normally Closed Micro Solenoid Valves Low Power Miniature Pneumatic Solenoid Valve 0

RSSM RSW RST-series 2-way direct acting solenoid valve specification table

model interface size

orifice size

(mm)

Cv



working pressure(bar) power valvebody material

weight

(Kg)

AC220 DC24V AC220V DC24V
RSSM-2 1/8" 2 0.12 0~10 0~8 10VA 8W

brass



SS316

0.3
RSSM-3 1/4" 3 0.20 0~8 0~7
RSSM-4 1/4" 4 0.3 0~6 0~5
RSW-015 1/8" 1.5 0.06 0~15 0~12 13VA 10W brass 0.26
RSW-020 2.0 0.12 0~10 0~8
RSW-025 2.5 0.20 0~8 0~6
RSW-030 3.0 0.25 0~6 0~5
RST-015

1/8"

OR

1/4"

1.5 0.06 0~20 0~15 15VA 12W brass 0.23
RST-020 2.0 0.12 0~12 0~10
RST-025 2.5 0.20 0~10 0~6
RST-030 3.0 0.25 0~8 0~3
RST-040 4.0 0.3 0~6 0~2
