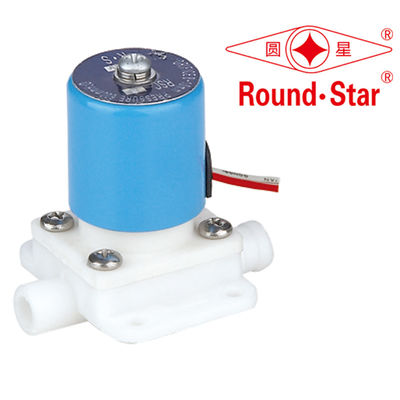

Reverse Osmosis RO Solenoid Valve DN 8MM AC220V DC24V Cannula

Reverse Osmosis RO Solenoid Valve DN 8MM AC220V DC24V Cannula
Reverse Osmosis RO Solenoid Valve DN 8MM AC220V DC24V Cannula

Large Image :  Reverse Osmosis RO Solenoid Valve DN 8MM AC220V DC24V Cannula

Product Details:
Place of Origin: China
Brand Name: Round Star
Certification: FDA
Model Number: RSC-8
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: USD+1.2-2.5+PCS
Packaging Details: EXPORTING STANDARD PACKING
Delivery Time: 2 working days after received your payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100,000pcs per month
Detailed Product Description
Working Medium: Water Medium Temperature: 0 ~ 100℃
Working Pressure: 600MM H2O Valvebody Material: PP
Interface: Quick Connector Working Voltage: AC220V
High Light:

solenoid valve for water purifier

,

ro auto shut off valve

RSC-8 water dispenser solenoid valve quick connector DN8MM AC220V DC24V cannula



characteristic : 1.Driect acting miniature construction at low power consumption

2.Food class body material available for RO system,Washer,miller,etc

medium: Air ,water ,etc

Temperature: NBR Seal -10F to 80

EPDM Seal :-10F to 80

VITON Seal:-10F to 80

Pressure : 0.0MPa~0.7MPa

Port Size: 1/4''

Port Thread : BSPP BSPT NPT

Orifice(mm) : 2.5

voltage: DC-12V,24V

AC-24V,120V,240V/50Hz

Tolerance: +/-10%

Coil: AB 12B,6VA(AC),6W(DC),IP65,100%ED

SA11B,9VA(AC),8W(DC),IP65,100%ED

SA11B,9VA(AC),8W(DC),IP65,100%ED

Material : Body-Nylon,PP,POM

Seal-VITON ,NBR,EPDM,Silicon rubben

Armature Tube -Stainless steel 304

Plunger-stainless steel 430F

Stop-ss430F

Springs-ss304



Technical parameters

working medium:water,hot water

 medium temperature:0~100℃

 working pressure:0~8bar(details see specification table)

 working type:RSC-1 RSC-2 direct acting(NC)

RSC-8 RSC-10 RSC-12 diaphragm type(NC)

  sealing material:RSC-1 RSC-2 EPDM(-10~130℃) VMQ(-10~130℃)

 RSC-8 RSC-10 RSC-12 VMQ

 valvebody material:PP POM

  interface:NPT thread cannula

  Working voltage:AC240V AC220/110V 50/60Hz 7VA DC24/12V 5.5W IP54 B degree voltage could be custom made



RSC-series solenoid valve specification table



model

Interface

size

orifice size

(mm)

Cv



working pressure(bar) power material

weight

(Kg)

AC220 DC24V AC220V DC24V
RSC-1 NPT1/8" 2.5 0.2 0~8 0~8 7VA 5.5W PP 0.13
RSC-2 NPT1/4" 2.5 0.2 0~8 0~8 0.13
RSC-2cannula cannula 2.5 0.2 0~8 0~8 POM 0.13
RSC-2L cannula 2.5 0.2 0~8 0~8 0.13
RSC-8 cannula 8 1.3 600mmH2O PP 0.14
RSC-10 cannula 10 2.3 0.14
RSC-12 cannula 12 3.0 0.13





RSC-series water dispenser solenoid valve drawing



Reverse Osmosis RO Solenoid Valve DN 8MM AC220V DC24V Cannula 0

Reverse Osmosis RO Solenoid Valve DN 8MM AC220V DC24V Cannula 1
