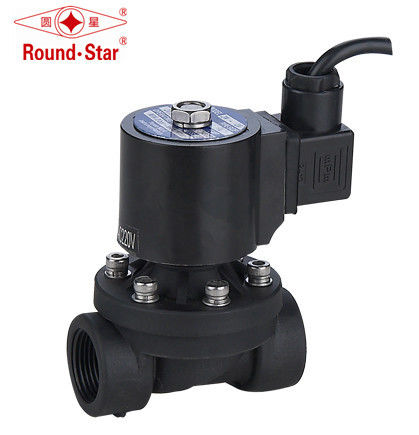

Waterproof PA66 Plastic Fountain Solenoid Valve , 2 Way Solenoid Valve Ip68 Underwater

Waterproof PA66 Plastic Fountain Solenoid Valve , 2 Way Solenoid Valve Ip68 Underwater
Waterproof PA66 Plastic Fountain Solenoid Valve , 2 Way Solenoid Valve Ip68 Underwater Waterproof PA66 Plastic Fountain Solenoid Valve , 2 Way Solenoid Valve Ip68 Underwater

Large Image :  Waterproof PA66 Plastic Fountain Solenoid Valve , 2 Way Solenoid Valve Ip68 Underwater

Product Details:
Place of Origin: CHINA
Brand Name: ROUND STAR
Certification: CEROHS
Model Number: SLDF-20SL
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Price: 20-100
Packaging Details: exporting standard package
Detailed Product Description
Working Medium: Water Working Pressure: 0 ~ 8bar (details See Specification Table)
Valve Body Material: Brass、SS PA66 Cast Iron Interface: G Thread NPT Thread Flange Connection
Working Voltage:: AC220~240V AC110V 50/60Hz Medium Temperature: -5 ~ 60 ℃
Working Type: Semi Direct Acting Pilot Operated (NC) Sealing Material: NBR
High Light:

water fountain solenoid valve

,

50mm solenoid valve

The working principle of the solenoid valve:

solenoid valve in the closed chamber, in different positions with holes, each hole leads to a different pipeline, the middle valve chamber is, both sides are two electromagnet, which faces the magnet coil energizing the body will be attracted to which side live or leaked to file different oil discharge hole by controlling the movement of the valve body, and into the hole is normally open, the hydraulic oil will enter a different outlet pipe, and then oil pressure to push the oil just pistons, piston and drive the piston rod drive mechanism moving. Thus by controlling the solenoid current is controlled mechanical movement. Looking at domestic and solenoid valve, so far from the action can be divided into three categories namely: direct acting, kick, pilot, and the difference from the valve different structures and materials as well as on the principle of reverse punch type can be divided into: diaphragm recoil solenoid valve, piston recoil solenoid valve; pilot can be divided into: pilot operated diaphragm solenoid valve, pilot operated piston solenoid valve; from the valve seat and seal material points can be divided into: soft sealing valve, solenoid valves sealed steel, semi-steel seal solenoid valves.



Waterproof PA66 Plastic Fountain Solenoid Valve , 2 Way Solenoid Valve Ip68 Underwater 0



SLDF series(underwater)solenoid valve external drawing



Waterproof PA66 Plastic Fountain Solenoid Valve , 2 Way Solenoid Valve Ip68 Underwater 1





SLDF series solenoid valve specification table





model Orifice size( mm ) interface size Cv

working pressure

(bar)

A×B×C

( mm )

normal order code



valve body material

AC220V

G thread

Material brass



SLDF-15 15 1/2" 3.8 0 ~ 6 68×56×117 SLDF-15-AC220V

brass



SS304

SLDF-20 20 3/4" 7.6 0 ~ 6 73×56×123 SLDF-20-AC220V
SLDF-25 25 1" 12 0 ~ 6 100×74×135 SLDF-25-AC220V
SLDF-32 32 11/4" 24 0 ~ 6 110×85×154 SLDF-32-AC220V
SLDF-40 40 11/2" 30 0 ~ 6 120×90×162 SLDF-40-AC220V
SLDF-50 50 2" 48 0 ~ 6 185×112×185 SLDF-50-AC220V
SLDF-15SL 15 1/2" 3.8 0 ~ 6 76×68×107 SLDF-15SL-AC220V PA66
SLDF-20SL 20 3/4" 7.6 0 ~ 6 80×68×111 SLDF-20SL-AC220V
SLDF-25SL 25 1" 12 0 ~ 6 107×82×117 SLDF-25SL-AC220V
SLDF-65JF 65

Flange

connection

53 0.3~8 256×185×318 SLDF-65JF-AC220V SS304
SLDF-80JF 80 82 0.3~8 277×200×327 SLDF-80JF-AC220V
SLDF-100JF 100 129 0.3~8 350×220×345 SLDF-100JF-AC220V
SLDF-150JF 150 292 0.3~8 450×285×400 SLDF-150JF-AC220V
SLDF-65CF 65

flange



connection

53 0.3~8 258×185×330 SLDF-65CF-AC220V Cast iron
SLDF-80CF 80 82 0.3~8 280×200×330 SLDF-80CF-AC220V
SLDF-100CF 100 128 0.3~8 354×220×390 SLDF-100CF-AC220V
SLDF-125CF 125 222 0.3~8 430×250×470 SLDF-125CF-AC220V
SLDF-150CF 150 292 0.3~8 454×285×480 SLDF-150CF-AC220V
SLDF-200CF 200 513 0.3~8 573×340×590 SLDF-200CF-AC220V





SLDF flange series solenoid valve external dimension table



model PN=1.6MPa GB/T9113.1-2000 flange connection dimension (mm)
DN L D H K d C f n-φ
SLDF-65JF 65 256 185 318 145 118 20 3 4-φ18
SLDF-80JF 80 277 200 327 160 132 20 3 8-φ18
SLDF-100JF 100 350 220 345 180 156 22 3 8-φ18
SLDF-150JF 150 450 285 400 240 211 24 3 8-φ22
SLDF-65CF 65 258 185 330 145 118 20 3 4-φ18
SLDF-80CF 80 280 200 330 160 132 20 3 8-φ18
SLDF-100CF 100 354 220 390 180 156 22 3 8-φ18
SLDF-125CF 125 430 250 470 210 186 22 3 8-φ18
SLDF-150CF 150 454 285 480 240 211 24 3 8-φ22
SLDF-200CF 200 573 340 590 295 266 24 3 12-φ22
