Product Details:
Payment & Shipping Terms:
|
| Working Medium: | Liquid、water、air、light Oil | Medium Temperature: | -5 ～ 80℃ |
|---|---|---|---|
| Working Pressure: | 0.3～16bar | Working Type: | DN1.5～4 Direct Acting DN15～50 Pilot Operated |
| Valvebody Material: | Brass SS316 PA66 | Sealing Material: | NBR |
| Interface: | G Thread NPT Thread | Working Voltage: | DC6V DC9V DC12V DC24V 4W 6W 12W IP65 H Degree |
| High Light: | latching solenoid valve water,latch solenoid valve |
||

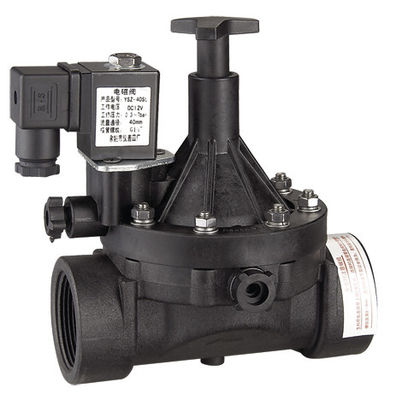

bistable latching solenoid valve 1 / 2 " - 2 " plastic material AC230V DC24V
YSZ-series pilot operated solenoid valve specification table
| model |
orifice size ( mm ) |
Interface size | Cv | working pressure(bar) |
length×width×height ( mm ) |
weight(Kg) | |||
| air | Water liquid | brass | SS | PA66 | |||||
| YSZ - 15 | 14 | 1/2＂ | 3.5 | 0.3～16 | 0.3～12 | 66×48×112 | 0.7 | 0.6 | |
| YSZ - 20 | 20 | 3/4＂ | 7.6 | 0.3～16 | 0.3～12 | 75×58×118 | 0.8 | 0.7 | |
| YSZ - 25 | 25 | 1＂ | 12 | 0.3～16 | 0.3～12 | 96×69×125 | 1.3 | 1.2 | |
| YSZ - 32 | 32 | 11/4＂ | 22 | 0.3～16 | 0.3～10 | 131×96×125 | 2.8 | 2.8 | |
| YSZ - 40 | 40 | 11/2＂ | 30 | 0.3～16 | 0.3～10 | 131×96×150 | 2.6 | 2.6 | |
| YSZ - 50 | 50 | 2＂ | 48 | 0.3～16 | 0.3～10 | 168×128×165 | 3.9 | 3.6 | |
| YSZ–15SL | 15 | 1/2＂ | 3.5 | 0.3～7 | 0.3～7 | 85×73×126 | 0.6 | ||
| YSZ–20SL | 20 | 3/4＂ | 7.6 | 0.3～7 | 0.3～7 | 90×73×128 | 0.6 | ||
| YSZ–25SL | 25 | 1＂ | 12 | 0.3～7 | 0.3～7 | 125×90×148 | 0.6 | ||
| YSZ–32SL | 32 | 11/4＂ | 22 | 0.3～7 | 0.3～7 | 150×128×173 | 0.8 | ||
| YSZ–40SL | 40 | 11/2＂ | 30 | 0.3～7 | 0.3～7 | 152×128×176 | 0.9 | ||
| YSZ–50SL | 50 | 2＂ | 48 | 0.3～7 | 0.3～7 | 170×140×190 | 1.1 | ||
