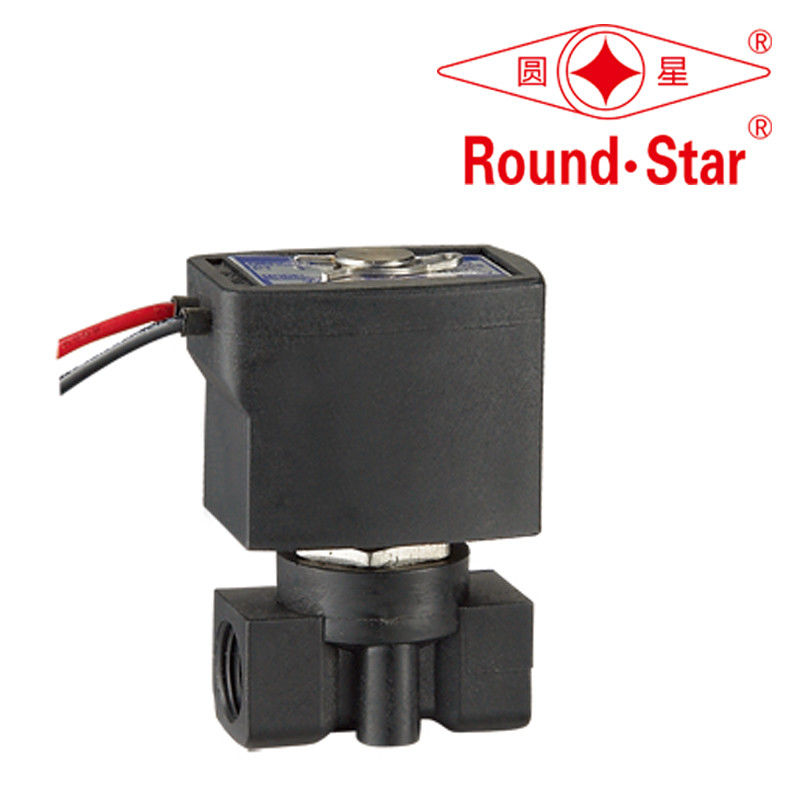

Plastic PA66 NC Mini Solenoid Valve Two Way Direct Acting 3MM AC220V / 230V

Plastic PA66 NC Mini Solenoid Valve Two Way Direct Acting 3MM AC220V / 230V
Plastic PA66 NC Mini Solenoid Valve Two Way Direct Acting 3MM AC220V / 230V

Large Image :  Plastic PA66 NC Mini Solenoid Valve Two Way Direct Acting 3MM AC220V / 230V

Product Details:
Place of Origin: China
Brand Name: Round Star
Certification: CE/ROHS/TUV/FDA
Model Number: RSO-SL
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: exporting condition
Delivery Time: 3 working days after received your payment
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 5,000pcs per month
Detailed Product Description
Working Medium: Water Medium Temperature: -5 ~ 80℃
Working Pressure: 0-10bar Valvebody Material: PA66
Sealing Material: VITON Interface: G Thread
Working Voltage: 220V
High Light:

micro solenoid valve

,

miniature solenoid valves

V2A plastic PA66 2-way mini solenoid valve direct acting normally closed NC DN3MM AC220V 230V



Plastic PA66 NC Mini Solenoid Valve Two Way Direct Acting 3MM AC220V / 230V 0

RSO-SL RSO V2A RSK-series solenoid valve specification table

model interface size

orifice size

(mm)

Cv



working pressure(bar) power valvebody material

weight

(Kg)

AC220 DC24V AC220V DC24V
RSO-SL 1/8" 1/4" 2.5 0.2 0~8 0~8 7VA 6W PP(black) 0.12
RSO 1/8" 1/4" 2.5 0.2 0~8 0~8 7VA 6W brass 0.2
V2A 1/4" 3.0 0.25 0~10 0~8 10VA 8W PA66(black) 0.2
RSK 1/8" 1.5 0.09 0~14 0~12 15VA 9W brass 0.17



Plastic PA66 NC Mini Solenoid Valve Two Way Direct Acting 3MM AC220V / 230V 1
