| Material: | PA66 ( From German ） | Interface Size: | 1/2＂ ～ 2＂ |
|---|---|---|---|
| Working Pressure: | 0~7 Bar | Sealing Material: | NBR |
| Interface Type: | G Thread NPT Thread | Voltage: | DC AC |
| High Light: | plastic water solenoid valve,pvc solenoid valve |
||

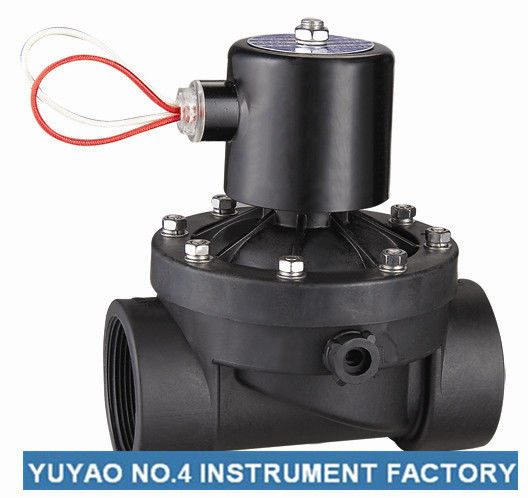

2W-SL series 2-way zero pressure difference normally closed German PA66 plastic water air solenoid valve 1/2＂ ～ 2＂
|
model |
Orifice size ( mm ) |
Interfaice size |
Cv
|
Working pressure (bar | dimension | Normal order code |
weight
(Kg) |
|
|
AC 220V |
DC 24V |
length×width×height A×B×C |
Plastic seal, voltage AC220V G thread, sealing material NBR
|
|||||
| 2W-15SLN | 15 | 1/2＂ | 4.8 | 0～7 | 0～6 | 76×68×107 | 2W-15SLN-AC220V | 0.5 |
| 2W-20SLN | 20 | 3/4＂ | 7.6 | 0～7 | 0～6 | 80×68×111 | 2W-20SLN-AC220V | 0.5 |
| 2W-25SLN | 25 | 1＂ | 12 | 0～7 | 0～6 | 107×82×117 | 2W-25SLN-AC220V | 0.6 |
| 2W-32SLN | 32 | 11/4＂ | 22 | 0～6 | 0～5 | 140×112×160 | 2W-32SLN-AC220V | 1.2 |
| 2W-40SLN | 40 | 11/2＂ | 30 | 0～6 | 0～5 | 140×112×170 | 2W-40SLN-AC220V | 1.3 |
| 2W-50SLN | 50 | 2＂ | 48 | 0～6 | 0～5 | 159×130×190 | 2W-50SLN-AC220V | 1.5 |
options:
LED light connector
ES low power energy saving coil(AC4VA DC4W)
