3 Way Brass Mini Solenoid Valve , 1/8 Inch Solenoid Valve 12VDC 24V

3 Way Brass Mini Solenoid Valve , 1/8 Inch Solenoid Valve 12VDC 24V
3 Way Brass Mini Solenoid Valve , 1/8 Inch Solenoid Valve 12VDC 24V

Large Image :  3 Way Brass Mini Solenoid Valve , 1/8 Inch Solenoid Valve 12VDC 24V

Product Details:
Place of Origin: China
Brand Name: Round Star
Certification: CE/ROHS/TUV/FDA
Model Number: 231Y
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: exporting condition
Delivery Time: 1 working days after received your payment
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 5,000pcs per month
Detailed Product Description
Working Medium: Liquid Medium Temperature: -10~ 120℃
Working Pressure: 0-8bar Valvebody Material: Brass
Sealing Material: VITON Interface: NPT Thread
Working Voltage: 24V
High Light:

small solenoid valve

,

miniature solenoid valves

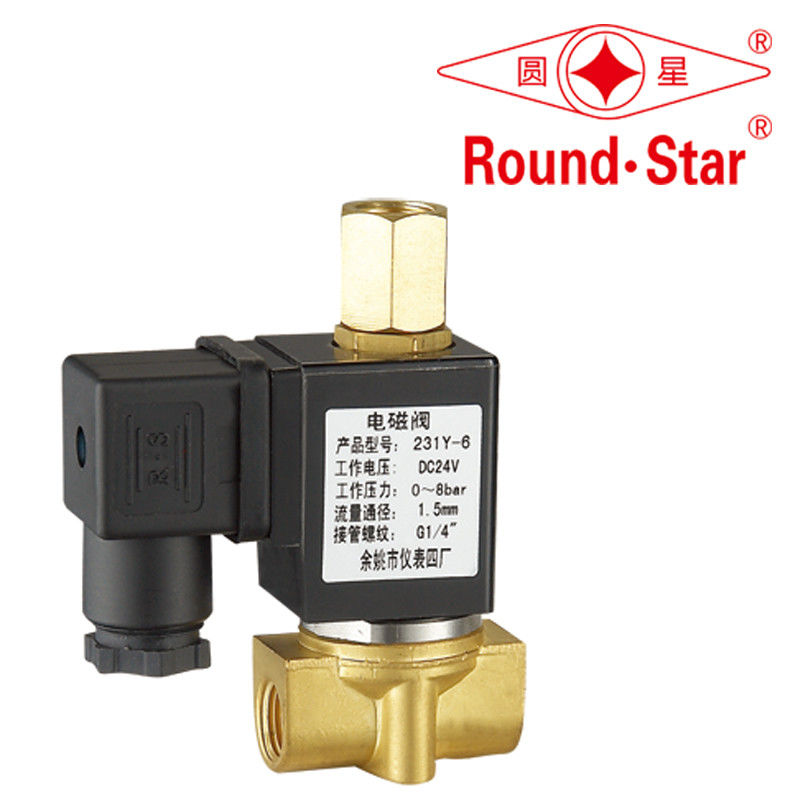

231Y brass 3-way mini solenoid valve direct acting NC 1 / 8 " - 1 / 4 " DC24V 12V



The main features of the low-pressure solenoid valve is more beautiful , in the absence of stressful situations can also start , good sealing . Using authoritarian coil , when in use is not easily destroyed. Relative to other materials in terms of security is relatively high.

3 Way Brass Mini Solenoid Valve , 1/8 Inch Solenoid Valve 12VDC 24V 0

231Y VX3 3/2RSW 231G 3-way solenoid valve specification table

model

Interface size



orifice size

(mm)

Cv



Working pressure(bar) power valvebody material note

weight

(Kg)

AC220V DC24V AC220V DC24V
231Y-3 1/8" 1.5 0.09 0~8 0~8 22VA 13W

brass

SS316

NC 0.35
231Y-6 1/4" 1.5 0.09
231Y-6A 1/4" 3.0 0.25 0~6 0~6 28VA 20W

brass ,SS316



NO,NC 0.45

VX3-015

(NO)

1/8"

1/4"

1.5 0.09 0~15 0~12 18VA 14W

brass

SS316

1or3 inlet,2 NC

AC220 with RAC connector

0.4
1.5 0.09

VX3-015

(NC)

1/8"

1/4"

1.5 0.09 0~12 0~12 18VA 14W

2 inlet,2 NC

AC220 with RAC connector

0.4
1.5 0.09
3/2RSW-015



1/8"





1.5 0.09 0~8 0~6 13VA 10W



brass



NC 0.25
3/2RSW-020 2.0 0.15 0~6 0~4
3/2RSW-025 2.5 0.20 0~5 0~3





3 Way Brass Mini Solenoid Valve , 1/8 Inch Solenoid Valve 12VDC 24V 1
