| Working Type: | Semi Direct Acting（NO） | Interface Size: | 3/8＂ ～ 2＂ |
|---|---|---|---|
| Options: | Es Low Power Energy Saving Coil (DN10～25 AC 4VA DC 4W DN32～50 AC 8VA DC 7W) | Sealing Material: | NBR EPDM VITON VMQ |
| Working Pressure: | 0~6 Bar | Options2: | Digital Timer, LED Light Connector |
| High Light: | solenoid water valve,electric solenoid valve for water |
||

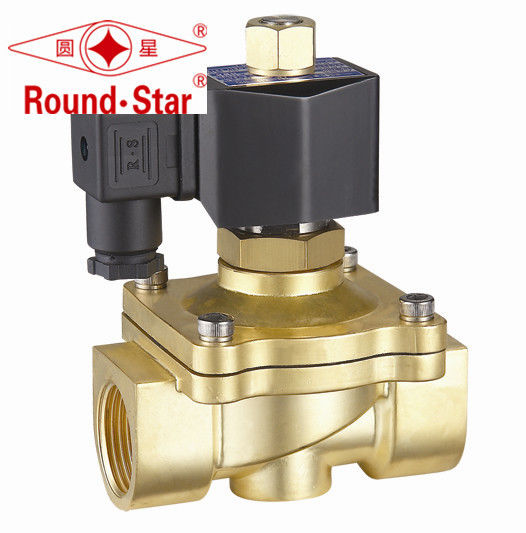

2W series thread 2-way zero pressure difference normally open solenoid valve 3/8＂ ～ 2＂
working medium:water,liquid,air,light oil(viscosity≤20cst)
medium temperature:-5 ～ 80℃
working pressure:0 ～ 6bar
working type:semi direct acting(NO)
valvebody material:brass SS304
sealing material:NBR
interface:G thread NPT thread
working voltage:AC220～240V AC110V 50/60Hz DC24 /12V IP65 H degree voltage could be custom made
DN10～25 AC 20VA DC 20W DN32～50 AC 45VA DC 31W
Options:
Rc thread sealing material: EPDM VITON VMQ (-10 ～ 130℃)
digital timer LED light connector
Es low power energy saving coil (DN10～25 AC 4VA DC 4W DN32～50 AC 8VA DC 7W)
2W-series thread connection 2-way(NO)solenoid valve specification table
(ES coil can match EPDM and VITON, but medium temperature must be ≤80℃)
|
interface
|
orifice (mm) |
Cv
|
working pressure(bar) |
medium temp. ℃
|
sealing material |
coil insulation degree
|
Coil power |
normal order code
|
||||||
|
min pressure |
max pressure pressure
|
Normal coil | Es coil |
plastic seal Voltage AC220V Thread:G thread sealing material:blank:NBR E:EPDM V:VITON
|
||||||||||
|
air gas water hotwater liquid light oil |
VA
|
W
|
VA
|
W
|
||||||||||
|
AC 220 V |
DC 24 V |
AC 220 V |
DC 24 V |
|||||||||||
| AC | DC | brass | SS304 | |||||||||||
| 3/8〃 | 16 | 4.8 | 0 | 6 | 6 | 80 | NBR | H | 20 | 20 | 5 | 6 | 2W-10NK-AC220V | 2W-10JNK-AC220V |
| 16 | 4.8 | 0 | 6 | 6 | 130 | EPDM | H | 20 | 20 | 2W-10NK-E-AC220V | 2W-10JNK-E-AC220V | |||
| 16 | 4.8 | 0 | 6 | 6 | 120 | VITON | H | 20 | 20 | 2W-10NK-V-AC220V | 2W-10JNK-V-AC220V | |||
|
1/2〃
|
16 | 4.8 | 0 | 6 | 6 | 80 | NBR | H | 20 | 20 | 5 | 6 | 2W-15NK-AC220V | 2W-15JNK-AC220V |
| 16 | 4.8 | 0 | 6 | 6 | 130 | EPDM | H | 20 | 20 | 2W-15NK-E-AC220V | 2W-15JNK-E-AC220V | |||
| 16 | 4.8 | 0 | 6 | 6 | 120 | VITON | H | 20 | 20 | 2W-15NK-V-AC220V | 2W-15JNK-V-AC220V | |||
| 3/4〃 | 20 | 7.6 | 0 | 6 | 6 | 80 | NBR | H | 20 | 20 | 5 | 6 | 2W-20NK-AC220V | 2W-20JNK-AC220V |
| 20 | 7.6 | 0 | 6 | 6 | 130 | EPDM | H | 20 | 20 | 2W-20NK-E-AC220V | 2W-20JNK-E-AC220V | |||
| 20 | 7.6 | 0 | 6 | 6 | 120 | VITON | H | 20 | 20 | 2W-20NK-V-AC220V | 2W-20JNK-V-AC220V | |||
| 1〃 | 25 | 12 | 0 | 6 | 6 | 80 | NBR | H | 45 | 31 | 5 | 6 | 2W-25NK-AC220V | 2W-25JNK-AC220V |
| 25 | 12 | 0 | 6 | 6 | 130 | EPDM | H | 45 | 31 | 2W-25NK-E-AC220V | 2W-25JNK-E-AC220V | |||
| 25 | 12 | 0 | 6 | 6 | 120 | VITON | H | 45 | 31 | 2W-25NK-V-AC220V | 2W-25JNK-V-AC220V | |||
|
11/4〃
|
35 | 24 | 0 | 6 | 6 | 80 | NBR | H | 45 | 31 | 8 | 7 | 2W-32NK-AC220V | 2W-32JNK-AC220V |
| 35 | 24 | 0 | 6 | 6 | 130 | EPDM | H | 45 | 31 | 2W-32NK-E-AC220V | 2W-32JNK-E-AC220V | |||
|
35 40 |
24 29 |
0 0 |
6 6 |
6 6 |
120 80 |
VITON NBR |
H H |
45 45 |
31 31 |
8 |
7 |
2W-32NK-V-AC220V 2W-40NK-AC220V |
2W-32JNK-V-AC220V 2W-40JNK-AC220V |
|
| 11/2〃 | ||||||||||||||
| 40 | 29 | 0 | 6 | 6 | 130 | EPDM | H | 45 | 31 | 2W-40NK-E-AC220V | 2W-40JNK-E-AC220V | |||
| 40 | 29 | 0 | 6 | 6 | 120 | VITON | H | 45 | 31 | 2W-40NK-V-AC220V | 2W-40JNK-V-AC220V | |||
| 2〃 | 50 | 48 | 0 | 6 | 6 | 80 | NBR | H | 45 | 31 | 8 | 7 | 2W-50NK-AC220V | 2W-50JNK-AC220V |
| 50 | 48 | 0 | 6 | 6 | 130 | EPDM | H | 45 | 31 | 2W-50NK-E-AC220V | 2W-50JNK-E-AC220V | |||
| 50 | 48 | 0 | 6 | 6 | 120 | VITON | H | 45 | 31 | 2W-50NK-V-AC220V | 2W-50JNK-V-AC220V | |||
Options:
Rc thread, sealing material: EPDM VITON VMQ (-10 ～ 130℃)
digital timer, LED light connector
Es low power energy saving coil (DN10～25 AC 4VA DC 4W DN32～50 AC 8VA DC 7W)
