anti water hammer pilot operated (NC) solenoid valve 1/2＂～ 2＂

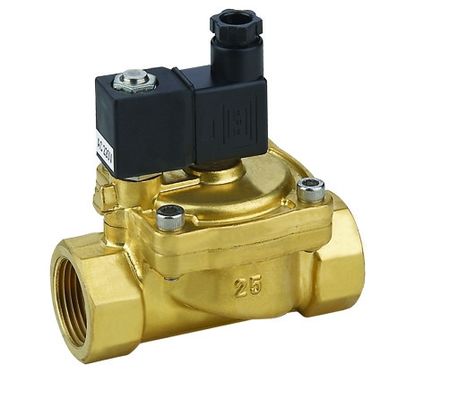

Large Image : anti water hammer pilot operated (NC) solenoid valve 1/2＂～ 2＂

Product Details:

Place of Origin:	CHINA
Brand Name:	ROUND STAR
Certification:	CEROHS
Model Number:	RSQ-20

Payment & Shipping Terms:

Minimum Order Quantity:	5PCS
Price:	20-100
Packaging Details:	exporting standard package
Supply Ability:	200

Contact Now

Detailed Product Description

Working Medium:	Water、liquid、air、light Oil（viscosity≤20cst）	Medium Temperature:	-5～80℃
Working Pressure:	0.3 ～ 16bar (details See Specification Table)	Working Type:	Pilot Operated
Valve Body Material:	Brass SS304	Sealing Material:	NBR (medium Temperature -5～80℃)
Interface Thread:	G Thread NPT Thread Rc Thread	Working Voltage:	AC220～240V AC110V 50/60Hz DC24/12V IP65 H Degree DN10～25 10VA 6W DN32～50 11VA 9W
High Light:	low voltage solenoid valve , 2 way solenoid valve

anti water hammer pilot operated (NC) solenoid valve 1/2＂～ 2＂ 0

RSQ series(NC)solenoid valve specification table

Interface size G	Orifice size (mm) mm	Cv	working pressure (bar)			Max medium temperature C mm	Sealing material	Coil insulation degree mm	power		normal order code
			Min pressure	max pressure					power		plastic seal AC220V G thread sealing material:blank NBR E: EPDM V: VITON
				air gas water hotwater liquid light oil					VA	W
				air gas water hotwater liquid light oil					AC 220 V	DC 24 V
				AC	DC				AC 220 V	DC 24 V	brass	SS
3/8^〃	13.5	3.5	0.3	16	16	80	Orifice size (mm) mm	H	10	6	RSQ-10-AC220V	RSQ-10J-AC220V
	13.5	3.5	0.3	16	16	130	Orifice size (mm) mm	H	10	6	RSQ-10-E-AC220V	RSQ-10J-E-AC220V
	13.5	3.5	0.3	16	16	120	Orifice size (mm) mm	H	10	6	RSQ-10-V-AC220V	RSQ-10J-V-AC220V
1/2^〃	13.5	3.5	0.3	16	16	80	Orifice size (mm) mm	H	10	6	RSQ-15-AC220V	RSQ-15J-AC220V
	13.5	3.5	0.3	16	16	130	Orifice size (mm) mm	H	10	6	RSQ-15-E-AC220V	RSQ-15J-E-AC220V
	13.5	3.5	0.3	16	16	120	Orifice size (mm) mm	H	10	6	RSQ-15-V-AC220V	RSQ-15J-V-AC220V
3/4^〃	18	7.6	0.3	16	16	80	Orifice size (mm) mm	H	10	6	RSQ-20-AC220V	RSQ-20J-AC220V
	18	7.6	0.3	16	16	130	Orifice size (mm) mm	H	10	6	RSQ-20-E-AC220V	RSQ-20J-E-AC220V
	18	7.6	0.3	16	16	120	Orifice size (mm) mm	H	10	6	RSQ-20-V-AC220V	RSQ-20J-V-AC220V
1^〃	24	12	0.3	16	16	80	Orifice size (mm) mm	H	10	6	RSQ-25-AC220V	RSQ-25J-AC220V
	24	12	0.3	16	16	130	Orifice size (mm) mm	H	10	6	RSQ-25-E-AC220V	RSQ-25J-E-AC220V
	24	12	0.3	16	16	120	Orifice size (mm) mm	H	10	6	RSQ-25-V-AC220V	RSQ-25J-V-AC220V
1¹/4^〃	31	20	0.3	12	12	80	Orifice size (mm) mm	H	11	9	RSQ-32-AC220V	RSQ-32J-AC220V
	31	20	0.3	12	12	130	Orifice size (mm) mm	H	11	9	RSQ-32-E-AC220V	RSQ-32J-E-AC220V
	31	20	0.3	12	12	120	Orifice size (mm) mm	H	11	9	RSQ-32-V-AC220V	RSQ-32J-V-AC220V
1¹/2^〃	39	28	0.3	12	12	80	Orifice size (mm) mm	H	11	9	RSQ-40-AC220V	RSQ-40J-AC220V
	39	28	0.3	12	12	130	Orifice size (mm) mm	H	11	9	RSQ-40-E-AC220V	RSQ-40J-E-AC220V
	39	28	0.3	12	12	120	Orifice size (mm) mm	H	11	9	RSQ-40-V-AC220V	RSQ-40J-V-AC220V
2^〃	48.5	46	0.3	12	12	80	Orifice size (mm) mm	H	11	9	RSQ-50-AC220V	RSQ-50J-AC220V
	48.5	46	0.3	12	12	130	Orifice size (mm) mm	H	11	9	RSQ-50-E-AC220V	RSQ-50J-E-AC220V
	48.5	46	0.3	12	12	120	Orifice size (mm) mm	H	11	9	RSQ-50-V-AC220V	RSQ-50J-V-AC220V
