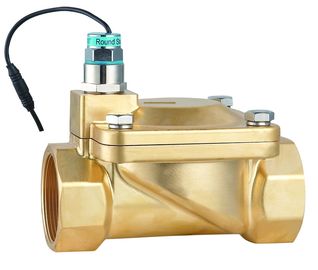

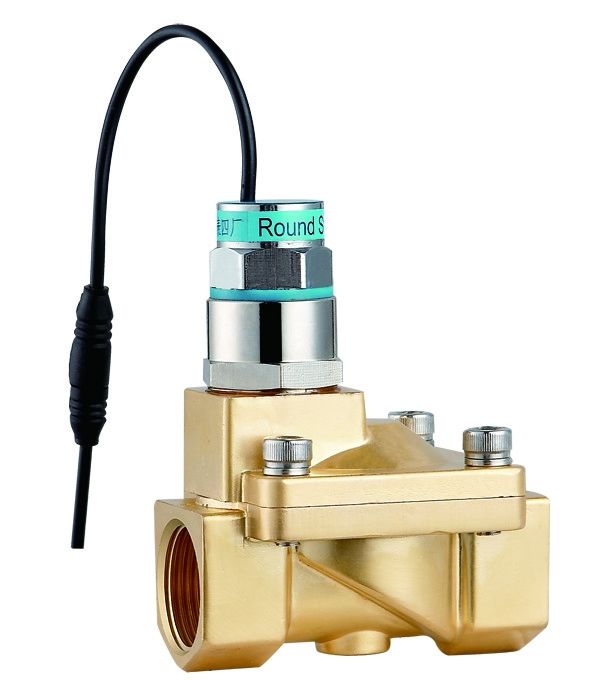

Rsz Series Self Sustaining Bistable Solenoid Valve 3/8" - 2"

Rsz Series Self Sustaining Bistable Solenoid Valve 3/8" - 2"
Rsz Series Self Sustaining Bistable Solenoid Valve 3/8" - 2" Rsz Series Self Sustaining Bistable Solenoid Valve 3/8" - 2"

Large Image :  Rsz Series Self Sustaining Bistable Solenoid Valve 3/8" - 2"

Product Details:
Place of Origin: China
Brand Name: Round Star
Certification: CE/ROHS
Model Number: RSZ
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Carton, wooden case, exporting condition
Delivery Time: 10 working days after received your payment
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 3,000pcs per month
Detailed Product Description
Working Medium: Liquid、water、air、light Oil Medium Temperature: -5 ~ 80℃
Working Pressure: 0.3~8bar Working Type: Pilot Operated
Valvebody Material: Brass SS316 Sealing Material: NBR
Interface: G Thread NPT Thread Working Voltage: DC6V DC9V DC12V DC24V 3W IP67 H Degree
High Light:

self sustaining bistable solenoid valve

,

bistable solenoid valve 3/8"

,

2" two way solenoid valve



RSZ series 2-way bistable self-sustaining pulse solenoid valve 3/8"~ 2"









Widely used in water-saving irrigation, automatic induction sanitary ware, landscaping, automatic irrigation, drip irrigation and other automation control.



working medium:air water liquid

medium temperature:-5~80℃

Working type:direct current pulse type(NC )

valvebody material:brass SS316

sealing material:NBR

interface:G thread NPT thread

working voltage:DC2.5~6.5V IP67

coil resistance:25Ω

min current:190mA

pulse width:≥10ms

Rsz Series Self Sustaining Bistable Solenoid Valve 3/8" - 2" 0





Rsz Series Self Sustaining Bistable Solenoid Valve 3/8" - 2" 1



RSZ series specification

model

Orifice

( mm )

interface Cv

Working pressure

(bar)

A×B×C

( mm )

Normal order code Weight(Kg)

Voltage DC6V

Copper body G thread

RSZ - 10 13 3/8" 3.5 0.3~8 66×48×94 RSZ–10 - DC6V 0.5
RSZ - 15 13 1/2" 3.5 0.3~8 66×48×94 RSZ–15 - DC6V 0.5
RSZ - 20 20 3/4" 7.6 0.3~8 75×58×100 RSZ–20 - DC6V 0.65
RSZ - 25 25 1" 12 0.3~8 96×69×107 RSZ–25 - DC6V 1.2
RSZ - 32 32 11/4" 20 0.3~8 131×96×132 RSZ–25 - DC6V 2.6
RSZ - 40 40 11/2" 30 0.3~8 131×96×132 RSZ–40 - DC6V 2.4
RSZ - 50 50 2" 48 0.3~8 165×120×147 RSZ–50 - DC6V 3.7





Rsz Series Self Sustaining Bistable Solenoid Valve 3/8" - 2" 2
