Product Details:
Payment & Shipping Terms:
|
| Voltage: | AC220～240V AC110V 50/60Hz 22VA DC24V DC12V 13W | Interface Size: | 3/8＂ ～ 2＂ |
|---|---|---|---|
| Interface: | G Thread NPT Thread Rc Thread | Sealing Material: | NBR(-5～80℃) EPDM VITON |
| Working Pressure: | 0.3~16 Bar | Coil: | IP65 H Degree |
| High Light: | solenoid water valve,electric solenoid water valve |
||

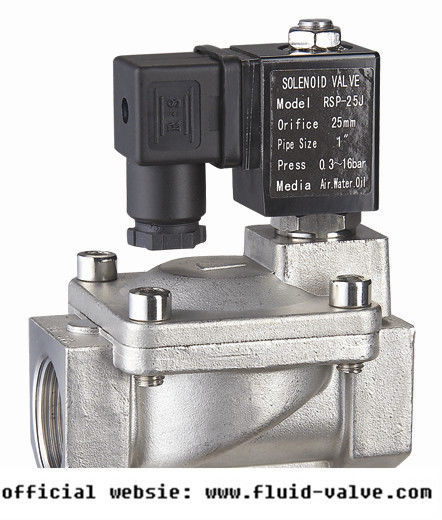

RSP series 2-way pilot operated normally closed brass SS316 water air solenoid valve 3/8＂ ～ 2＂
RSP-series 2-way pilot operated(NC)solenoid valve specification table
(ES coil can match EPDM and VITON, but medium temperature must be ≤80℃)
|
interface
|
orifice (mm) |
Cv
|
working pressure(bar) |
medium temperature ℃
|
sealing material |
coil insulation degree
|
power |
normal order code
|
||||||
|
min pressure |
Max pressure | normal coil | Es coil |
plastic seal AC220V G thread sealing material:blank:NBR E:EPDM V:VITON
|
||||||||||
|
air gas water hotwater liquid light oil |
VA | W |
VA
|
W
|
||||||||||
|
AC 220 V |
DC 24 V |
AC 220 V |
DC 24 V |
|||||||||||
| AC | DC | brass | SS316 | |||||||||||
| 3/8〃 | 13 | 4.5 | 0.3 | 16 | 16 | 80 | NBR | H | 22 | 13 | 3 | 3 | RSP-10-AC220V | RSP-10J-AC220V |
| 13 | 4.5 | 0.3 | 16 | 16 | 130 | EPDM | H | 22 | 13 | RSP-10-E-AC220V | RSP-10J-E-AC220V | |||
| 13 | 4.5 | 0.3 | 16 | 16 | 120 | VITON | H | 22 | 13 | RSP-10-V-AC220V | RSP-10J-V-AC220V | |||
|
1/2〃
|
13 | 4.5 | 0.3 | 16 | 16 | 80 | NBR | H | 22 | 13 | 3 | 3 | RSP-15-AC220V | RSP-15J-AC220V |
| 13 | 4.5 | 0.3 | 16 | 16 | 130 | EPDM | H | 22 | 13 | RSP-15-E-AC220V | RSP-15J-E-AC220V | |||
| 13 | 4.5 | 0.3 | 16 | 16 | 120 | VITON | H | 22 | 13 | RSP-15-V-AC220V | RSP-15J-V-AC220V | |||
| 3/4〃 | 20 | 7.6 | 0.3 | 16 | 16 | 80 | NBR | H | 22 | 13 | 3 | 3 | RSP-20-AC220V | RSP-20J-AC220V |
| 20 | 7.6 | 0.3 | 16 | 16 | 130 | EPDM | H | 22 | 13 | RSP-20-E-AC220V | RSP-20J-E-AC220V | |||
| 20 | 7.6 | 0.3 | 16 | 16 | 120 | VITON | H | 22 | 13 | RSP-20-V-AC220V | RSP-20J-V-AC220V | |||
| 1〃 | 25 | 12 | 0.3 | 16 | 16 | 80 | NBR | H | 22 | 13 | 3 | 3 | RSP-25-AC220V | RSP-25J-AC220V |
| 25 | 12 | 0.3 | 16 | 16 | 130 | EPDM | H | 22 | 13 | RSP-25-E-AC220V | RSP-25J-E-AC220V | |||
| 25 | 12 | 0.3 | 16 | 16 | 120 | VITON | H | 22 | 13 | RSP-25-V-AC220V | RSP-25J-V-AC220V | |||
|
11/4〃
|
32 | 24 | 0.3 | 16 | 16 | 80 | NBR | H | 22 | 13 | 3 | 3 | RSP-32-AC220V | RSP-32J-AC220V |
| 32 | 24 | 0.3 | 16 | 16 | 130 | EPDM | H | 22 | 13 | RSP-32-E-AC220V | RSP-32J-E-AC220V | |||
| 32 | 24 | 0.3 | 16 | 16 | 120 | VITON | H | 22 | 13 | RSP-32-V-AC220V | RSP-32J-V-AC220V | |||
| 11/2〃 | 40 | 30 | 0.3 | 16 | 16 | 80 | NBR | H | 22 | 13 | 3 | 3 | RSP-40-AC220V | RSP-40J-AC220V |
| 40 | 30 | 0.3 | 16 | 16 | 130 | EPDM | H | 22 | 13 | RSP-40-E-AC220V | RSP-40J-E-AC220V | |||
| 40 | 30 | 0.3 | 16 | 16 | 120 | VITON | H | 22 | 13 | RSP-40-V-AC220V | RSP-40J-V-AC220V | |||
| 2〃 | 50 | 48 | 0.3 | 16 | 16 | 80 | NBR | H | 22 | 13 | 3 | 3 | RSP-50-AC220V | RSP-50J-AC220V |
| 50 | 48 | 0.3 | 16 | 16 | 130 | EPDM | H | 22 | 13 | RSP-50-E-AC220V | RSP-50J-E-AC220V | |||
| 50 | 48 | 0.3 | 16 | 16 | 120 | VITON | H | 22 | 13 | RSP-50-V-AC220V | RSP-50J-V-AC220V |
|||
