|Working Medium:||Water、liquid、air、light Oil（viscosity≤20cst）||Medium Temperature:||-5 ～ 80℃. 0-180℃|
|Working Pressure:||0 ～ 16 Bar||Environmental Temperature:||-10-50 ℃ Relative Humidity ≤85%|
|Valve Body Material:||Brass, Stainless Steel. SS 304, Cast Iron||Explosion Proof Structure:||Flameproof Exd II BT4, Encapsulation Type Exm BI/IIBT 4|
|Coil Parameters:||AC 110V AC 220V AC 240V DC 12V DC 24V Flameproof IP 54 Encapsulation Type IP 65 I Meter-long Cable Wire|

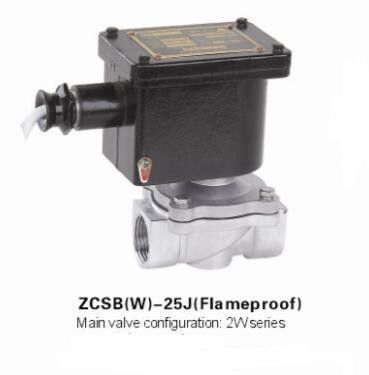

explosion proof valve,
solenoid valve explosion proof
1, explosion-proof solenoid valve operation and long life.
2, explosion-proof solenoid valve operating system: sub-long work, repeated short-time working and short-time work three. Explosion-proof solenoid valves are long-term work system, which allows the coil is energized to work long-term. For a long time the valve opening of the case is only a short time off, are advised to use a normally open solenoid valve. In the short-time working with large quantities when, you can make a special order to reduce power consumption.
3, explosion-proof solenoid valves operating frequency: frequency of demanding action, the structure should be optimized direct acting solenoid valve, the power to listen preferred exchange.
Proof solenoid valve coil casing which not only has to withstand the pressure of the gas explosion explosion effect, but also has a gas explosion energy transfer blocking effect and higher safety performance. Is specially designed for the transmission medium or explosive is dedicated to the explosive dangerous places special solenoid valve series, different environments and different fluids should choose explosion proof solenoid valve.
