Stainless Steel Flameproof Explosion Proof Solenoid Valve With Steam Medium

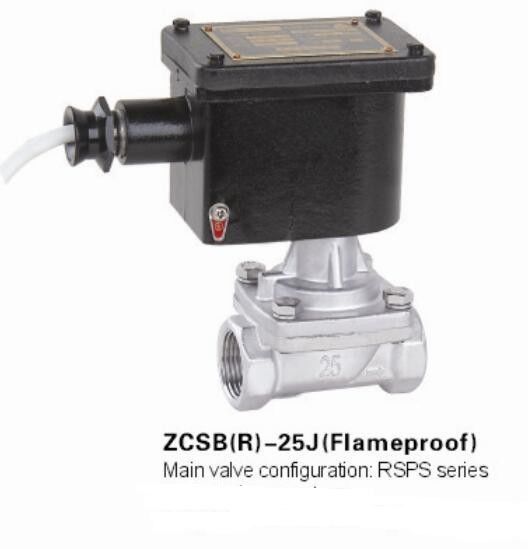

Large Image : Stainless Steel Flameproof Explosion Proof Solenoid Valve With Steam Medium

Product Details:

Place of Origin:	CHINA
Brand Name:	ROUND STAR
Certification:	CE
Model Number:	ZCSB

Payment & Shipping Terms:

Minimum Order Quantity:	5PCS
Price:	50-1000
Packaging Details:	exporting standard package
Supply Ability:	200

Contact Now

Detailed Product Description

Working Medium:	Water、liquid、air、light Oil（viscosity≤20cst）	Medium Temperature:	-5 ～ 80℃. 0-180℃
Working Pressure:	0 ～ 16 Bar	Environmental Temperature:	-10-50 ℃ Relative Humidity ≤85%
Valve Body Material:	Brass, Stainless Steel. SS 304, Cast Iron	Explosion Proof Structure:	Flameproof Exd II BT4, Encapsulation Type Exm BI/IIBT 4
Coil Parameters:	AC 110V AC 220V AC 240V DC 12V DC 24V Flameproof IP 54 Encapsulation Type IP 65 I Meter-long Cable Wire
High Light:	solenoid valve explosion proof , intrinsically safe solenoid valve

Stainless Steel Flameproof Explosion Proof Solenoid Valve With Steam Medium

Explosion-proof solenoid valve is a device might ignite the explosive gas mixture components all enclosed in a shell, the shell can withstand any joints or structural gap housing, penetrated into the interior of the housing flammable mixture in an internal explosion without damage, and without lit from one external cause, a variety of gases or vapors to form explosive environment, the possible sparks, arcs and dangerous temperature of the components are placed in a flameproof enclosure, flameproof enclosure so that the inner space of the device and the surroundings apart. Flameproof enclosure there is a gap, due to respiration and electrical equipment gas permeation, so there may be an internal explosive gas mixtures.

Stainless Steel Flameproof Explosion Proof Solenoid Valve With Steam Medium 0

Stainless Steel Flameproof Explosion Proof Solenoid Valve With Steam Medium 1

Stainless Steel Flameproof Explosion Proof Solenoid Valve With Steam Medium 2

Stainless Steel Flameproof Explosion Proof Solenoid Valve With Steam Medium 3
