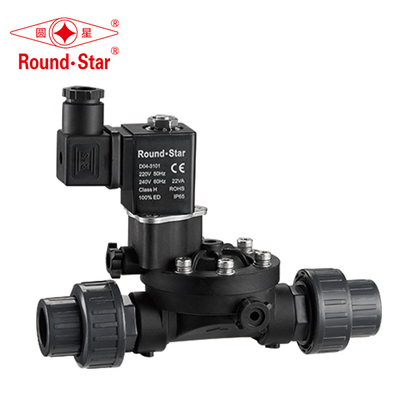

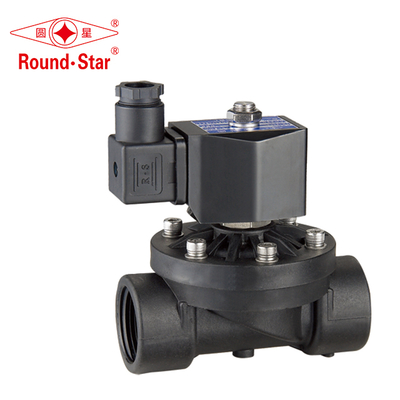

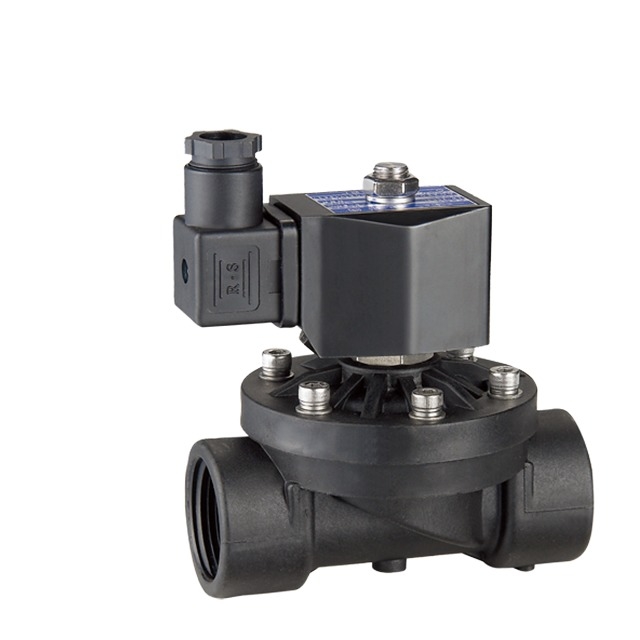

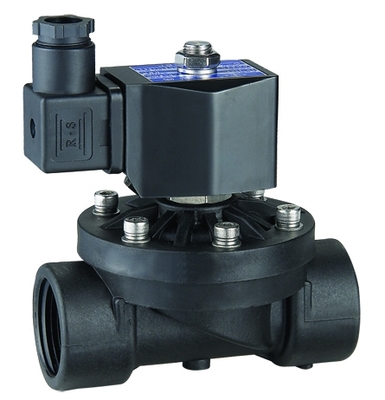

1 Inch Plastic Solenoid Water Valve AC220V IP65 3-Year Warranty

1 Inch Plastic Solenoid Water Valve AC220V IP65 3-Year Warranty
1 Inch Plastic Solenoid Water Valve AC220V IP65 3-Year Warranty 1 Inch Plastic Solenoid Water Valve AC220V IP65 3-Year Warranty 1 Inch Plastic Solenoid Water Valve AC220V IP65 3-Year Warranty 1 Inch Plastic Solenoid Water Valve AC220V IP65 3-Year Warranty 1 Inch Plastic Solenoid Water Valve AC220V IP65 3-Year Warranty 1 Inch Plastic Solenoid Water Valve AC220V IP65 3-Year Warranty

Large Image :  1 Inch Plastic Solenoid Water Valve AC220V IP65 3-Year Warranty

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Round Star
Model Number: 2W-20SL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $8.99-12.99
Contact Now
Detailed Product Description
Port Size: 1" Working Medium: Water, Liquid, Air, Light Oil (viscosity≤20cst)
Medium Temperature: -5～80℃ Working Pressure: 0～7 Bar
Working Type: Semi Direct Acting Valve Body Material: PA66 (from German)
Sealing Material: NBR (-5～80℃) Interface: G Thread, NPT Thread
Working Voltage: AC220～240V, AC110V 50/60Hz, DC24/12V Power Consumption: DN15～25 AC20VA DC20W, DN32～50 AC50VA DC35W
IP Rating: IP65 Pilot Pressure: 0.3～8 Bar
Coil Power: AC25VA, DC13W Energy Saving: AC220V 3VA, DC24V 3W
Thread Type: G Thread, NPT Thread
Highlight:

1 inch plastic solenoid valve

,

AC220V water solenoid valve

,

IP65 waterproof solenoid valve

2 Way IP65 2W-25SL YSA Plastic Solenoid Water Valve
Product Specifications
Attribute Value
Application General
Port Size 1"
Warranty 3 years
Power Solenoid
Temperature Range Medium Temperature, Normal Temperature
Type SOLENOID VALVES
Structure Diaphragm
Media Water
Certifications CE ISO ROHS
Technical Details
  • Working medium: Water, liquid, air, light oil (viscosity≤20cst)
  • Medium temperature: -5°C to 80°C
  • Working pressure: 0 to 7 bar
  • Working type: Semi direct acting
  • Valve body material: PA66 (from Germany)
  • Sealing material: NBR (-5°C to 80°C)
  • Interface: G thread, NPT thread
  • Working voltage: AC220-240V, AC110V 50/60Hz, DC24/12V
  • Options: LED light connector
1 Inch Plastic Solenoid Water Valve AC220V IP65 3-Year Warranty 0
1 Inch Plastic Solenoid Water Valve AC220V IP65 3-Year Warranty 1

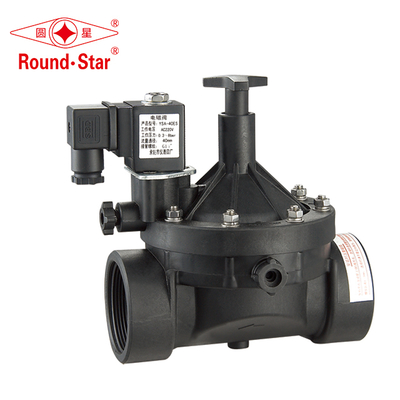

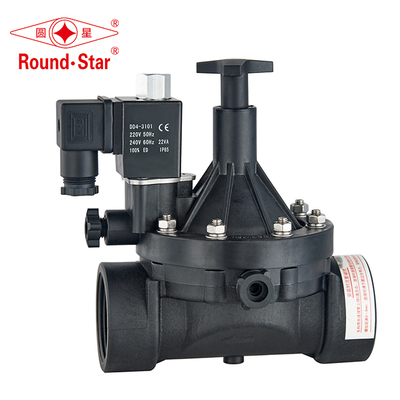

YSA YSB-series 2-way Pilot Operated (NC) Plastic Solenoid Valve
  • Working medium: Water, liquid, air
  • Medium temperature: -5°C to 80°C
  • Working pressure: 0.3 to 8 bar
  • Working type: Pilot operated, NC
  • Valve body material: PA66
  • Sealing material: NBR
  • Interface: G thread, NPT thread
  • Working voltage: AC220-240V, AC110V 50/60Hz, DC24V
  • Options: LED light connector, ES low power energy saving coil
1 Inch Plastic Solenoid Water Valve AC220V IP65 3-Year Warranty 2
1 Inch Plastic Solenoid Water Valve AC220V IP65 3-Year Warranty 3
Quality Assurance
With more than 40 years of experience since 1965, we maintain strict quality control throughout our manufacturing process:
  • Each solenoid valve undergoes high pressure, low pressure, and leakage testing
  • Metal components tested by German OXFORD spectrometer for material verification
  • Automatic digital winding machines ensure precision coil production
  • Climate-controlled assembly workshops maintain clean working conditions
1 Inch Plastic Solenoid Water Valve AC220V IP65 3-Year Warranty 4
1 Inch Plastic Solenoid Water Valve AC220V IP65 3-Year Warranty 5
1 Inch Plastic Solenoid Water Valve AC220V IP65 3-Year Warranty 6
Packaging & Delivery
We ensure safe transportation with protective packaging solutions:
  • Shockproof bags for individual valve protection
  • Strong cartons with English neutral packaging
  • Custom logo options available
  • For shipments over 40kg: fumigated wooden cases or pallets
1 Inch Plastic Solenoid Water Valve AC220V IP65 3-Year Warranty 7
1 Inch Plastic Solenoid Water Valve AC220V IP65 3-Year Warranty 8
