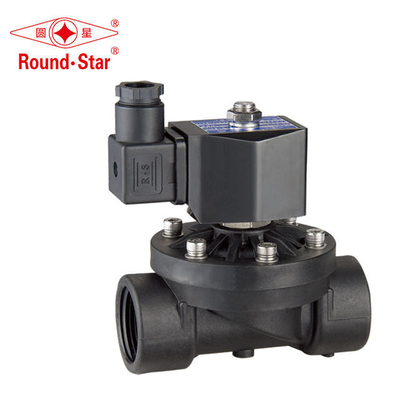

2W-SL Series 2-Way Plastic Solenoid Valve 1 Inch for Water and Air

2W-SL Series 2-Way Plastic Solenoid Valve 1 Inch for Water and Air
2W-SL Series 2-Way Plastic Solenoid Valve 1 Inch for Water and Air 2W-SL Series 2-Way Plastic Solenoid Valve 1 Inch for Water and Air 2W-SL Series 2-Way Plastic Solenoid Valve 1 Inch for Water and Air 2W-SL Series 2-Way Plastic Solenoid Valve 1 Inch for Water and Air 2W-SL Series 2-Way Plastic Solenoid Valve 1 Inch for Water and Air

Large Image :  2W-SL Series 2-Way Plastic Solenoid Valve 1 Inch for Water and Air

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Round Star
Model Number: 2W-20SL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $8.99-12.99
Contact Now
Detailed Product Description
Port Size: 1" Working Medium: Water, Liquid, Air, Light Oil (viscosity≤20cst)
Medium Temperature: -5 ~ 80℃ Working Pressure: 0 ~ 7 Bar
Working Type: Semi Direct Acting Valve Body Material: PA66 (from German)
Sealing Material: NBR (-5 ~ 80℃) Interface: G Thread, NPT Thread
Working Voltage: AC220~240V, AC110V 50/60Hz, DC24/12V Power Consumption: DN15~25 AC20VA DC20W, DN32~50 AC50VA DC35W
Structure: Diaphragm Function: Electromechanical Valve For Liquid Or Gas
Options: LED Light Connector Working Pressure Range: 0.3 ~ 8 Bar
Power Consumption (YSA-series): AC25VA DC13W
Highlight:

1 inch plastic solenoid valve

,

2-way water solenoid valve

,

air and water solenoid valve

2W-SL Series 2-Way Zero Differential Pressure Plastic Solenoid Valve
Product Specifications
Application General
Port Size 1"
Warranty 3 years
Power Solenoid
Temperature Range Medium Temperature, Normal Temperature
Type Other Valves
Structure Diaphragm
Media Water
Certifications CE ISO ROHS
Technical Details
  • Working medium: Water, liquid, air, light oil (viscosity ≤20cst)
  • Medium temperature: -5°C to 80°C
  • Working pressure: 0 to 7 bar
  • Working type: Semi direct acting
  • Valve body material: PA66 (from Germany)
  • Sealing material: NBR (-5°C to 80°C)
  • Interface: G thread, NPT thread
  • Working voltage: AC220-240V, AC110V 50/60Hz, DC24/12V
  • Options: LED light connector available
2W-SL Series 2-Way Plastic Solenoid Valve 1 Inch for Water and Air 0
2W-SL Series 2-Way Plastic Solenoid Valve 1 Inch for Water and Air 1

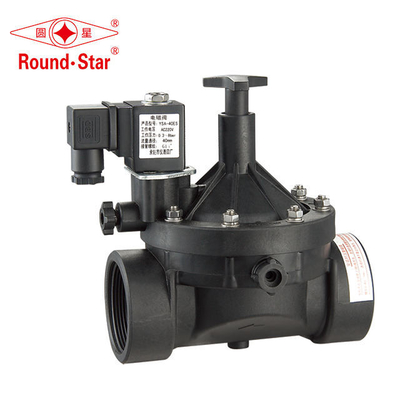

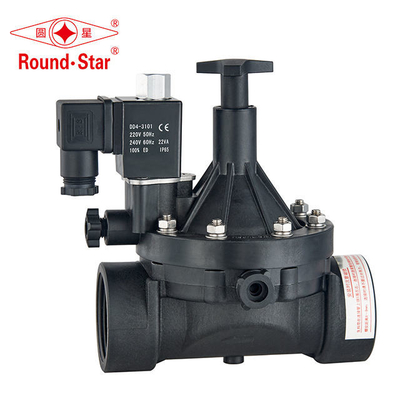

YSA YSB-Series 2-Way Pilot Operated (NC) Plastic Solenoid Valve
  • Working medium: Water, liquid, air
  • Medium temperature: -5°C to 80°C
  • Working pressure: 0.3 to 8 bar
  • Working type: Pilot operated, NC
  • Valve body material: PA66
  • Sealing material: NBR
  • Interface: G thread, NPT thread
  • Working voltage: AC220-240V, AC110V 50/60Hz, DC24V
  • Options: LED light connector, ES low power energy saving coil
2W-SL Series 2-Way Plastic Solenoid Valve 1 Inch for Water and Air 2
2W-SL Series 2-Way Plastic Solenoid Valve 1 Inch for Water and Air 3
Quality Assurance
With more than 40 years of experience since 1965, we maintain strict quality control throughout our manufacturing process.
Manufacturing Excellence
2W-SL Series 2-Way Plastic Solenoid Valve 1 Inch for Water and Air 4
2W-SL Series 2-Way Plastic Solenoid Valve 1 Inch for Water and Air 5
2W-SL Series 2-Way Plastic Solenoid Valve 1 Inch for Water and Air 6
2W-SL Series 2-Way Plastic Solenoid Valve 1 Inch for Water and Air 7
2W-SL Series 2-Way Plastic Solenoid Valve 1 Inch for Water and Air 8
Packaging Options
2W-SL Series 2-Way Plastic Solenoid Valve 1 Inch for Water and Air 9
2W-SL Series 2-Way Plastic Solenoid Valve 1 Inch for Water and Air 10
2W-SL Series 2-Way Plastic Solenoid Valve 1 Inch for Water and Air 11
2W-SL Series 2-Way Plastic Solenoid Valve 1 Inch for Water and Air 12
