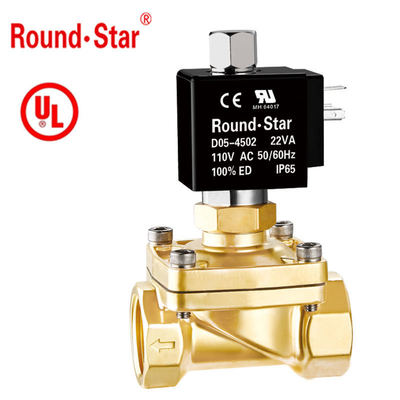

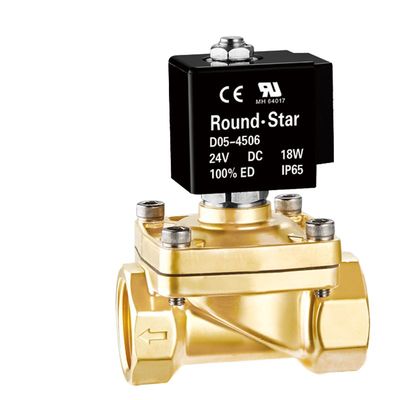

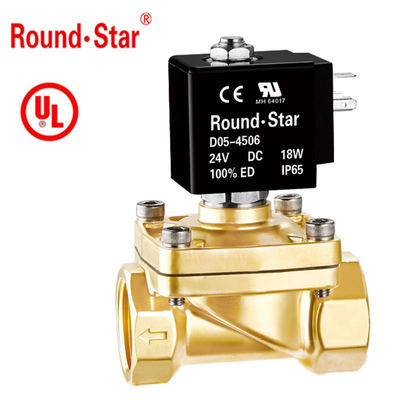

UZW Series Semi Direct-acting Diaphragm Solenoid Valve with 3/8INCH-1INCH Port and 40+ Years Experience

Large Image : UZW Series Semi Direct-acting Diaphragm Solenoid Valve with 3/8INCH-1INCH Port and 40+ Years Experience

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Round Star
Certification:	UL
Model Number:	UZW

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$10.99-15.99

Contact Now

Detailed Product Description

Port Size:	3/8INCH-1INCH	Structure:	Pilot
Working Medium:	Water, Liquid, Air, Light Oil	Ambient Temperature:	-10~55℃
Medium Temperature:	-20~130℃	Working Type:	Semi Direct Acting(NC Type, NO Type)
Working Pressure:	NC0~8bar, NO 0-5bar	Valve Body Material:	Brass SS304
Sealing Material:	NBR(-10~80℃)	Interface:	G Thread, NPT Thread
Working Voltage:	AC220V, AC240V, AC110V, AC120V, AC24V, 50/60Hz; DC24V, DC12V, DC36V	Power:	Solenoid
Media:	Gas	Temperature Range:	Low Temperature, Medium Temperature, Normal Temperature
Type:	SOLENOID VALVES
Highlight:	Semi Direct-acting Diaphragm Solenoid Valve , 3/8INCH-1INCH Solenoid Valve , 40+ Years Experience Solenoid Valve

UZW Series Semi Direct-acting Diaphragm Solenoid Valve

High-performance brass/SS304 solenoid control valve with G/NPT thread connections for precise fluid control applications.

Technical Specifications

Parameter	Value
Working medium	Water, liquid, air, light oil
Ambient temperature	-10~55℃
Medium temperature	-20~130℃
Working type	Semi direct acting (NC type, NO type)
Working pressure	NC 0~8bar, NO 0-5bar
Valve body material	Brass, SS304
Sealing material	NBR (-10~80℃)
Interface	G thread, NPT thread
Working voltage	AC220V, AC240V, AC110V, AC120V, AC24V, 50/60Hz; DC24V, DC12V, DC36V
