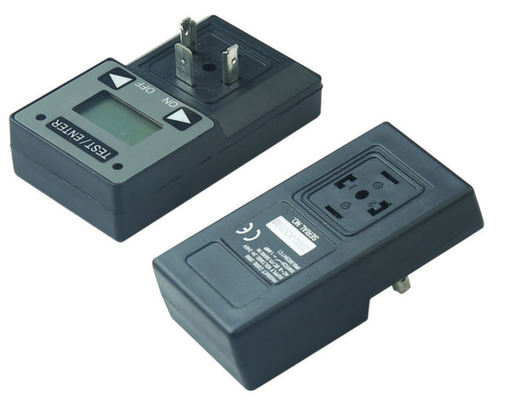

Solenoid Timer Electric Timer with 24-240V AC/DC 4mA Current and IP65 Protection

Large Image : Solenoid Timer Electric Timer with 24-240V AC/DC 4mA Current and IP65 Protection

Product Details:

Place of Origin:	China
Brand Name:	round star
Model Number:	YS-3800

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Supply Voltage:	24~240V AC/DC	Max Current:	4mA
Structure:	Diaphragm	Power Type:	Solenoid
Operating Temperature:	-40 -60°C	Time On:	0.5-10 Sec
Time Off:	0.5-45 Min	Connector Type:	DIN 4650A
Protection Class:	IP 65	Voltage Range:	24-240VAC/DC 50/60HZ
Absorption Current:	4MA	Time On Range:	0.5-99 Sec
Time Off Range:	0.5-99 Min	Connector Standard:	DIN 43650A
Timer Type:	Analog And Digital
Highlight:	24-240V AC/DC Solenoid Timer , 4mA Current Electric Timer , IP65 Protection Digital Timer

YS-3800 Solenoid Electric Timer Digital

Product Description

Electronic timers designed for precise control of electrical processes with both analog and digital interval timing capabilities.

Key Specifications

Supply voltage: 24~240V AC/DC
Maximum current: 4mA
Combination of solenoid valve and timer functionality

A timer is a specialized control device that counts down from a specified interval to manage process sequences. Unlike stopwatches that measure elapsed time, timers actively control operations by signaling or switching power when the set period expires. Available in mechanical, electromechanical, and electronic (quartz) variants, these industrial timers provide reliable process automation.

Technical Specifications

TYPE	RSX-720	RSX-2000	RSX-11
SUPPLY VOLTAGE	24-240VAC/DC 50/60HZ	110-240VAC/DC 50/60HZ	24-240VAC/DC 50/60HZ
ABSORPTION	4MA	4MA	4MA
OPERATING TEMP.	-40 -60	-10~55	-40-60
TIME ON	0.5-10 SEC	0.5-99 SEC	2 SEC
TIME OFF	0.5-45 MIN	0.5-99 MIN	0.5-120 MIN
CONNECTOR AND GASKET	DIN 4650A	DIN 43650A	DIN 43650B
CLASS PROTECTION	IP 65	IP 65	IP 65
