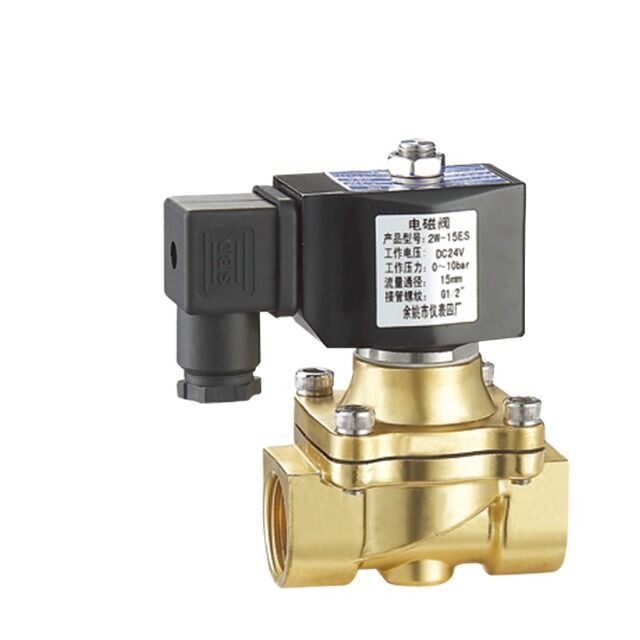

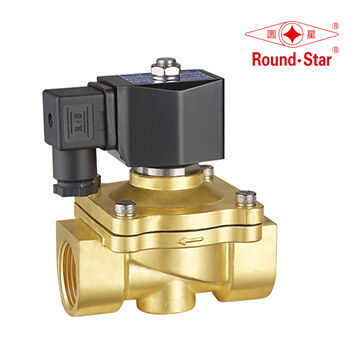

2W Series Brass Gas Solenoid Valve Diaphragm Solenoid Valve 0-10bar

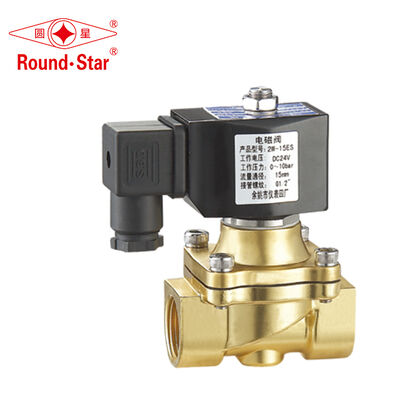

Large Image : 2W Series Brass Gas Solenoid Valve Diaphragm Solenoid Valve 0-10bar

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	round star
Model Number:	2W

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	CN¥27.33-34.16

Contact Now

Detailed Product Description

Port Size:	1/8'-2'	Structure:	Diaphragm
Type:	Other Valves	Application:	General
Customized Support:	OEM	Media:	Base
Power:	Solenoid	Temperature Of Media:	Medium Temperature
Warranty:	3 Years	Standard Or Nonstandard:	Standard
Type:	SOLENOID VALVES
Highlight:	2W brass gas solenoid valve , diaphragm solenoid valve 0-10bar , water solenoid valve with warranty

Product Description

working medium:water,liquid,air,light oil(viscosity≤20cst)

medium temperature:-5 ~ 80℃

working pressure:0 ~ 10bar (details see specification table)

working type:semi direct acting(NC)

Valvebody material:brass SS304

sealing material:NBR

interface:G thread NPT thread

voltage:AC220~240V AC 110V AC24V 50/60Hz DC24V DC12V IP65 H degree(iron seal coil: IP54 B degree)

DN10~25 AC 20VA DC 30W DN35~50 AC 45VA DC 31W

Options:

Rc thread sealing material: EPDM VITON VMQ(-10~130℃)

Digital timer LED light connector

Es low power energy saving coil( DN10~25 AC220 V4VA DC24V 4W DN35~50 AC220V 8VA DC24V 7W )

Lead wire iron seal coil

Packaging & Shipping

Our Services

Tag:

Contact Person: Miss.Ying

Tel: +8615257496712

Other Products

24VDC Brass Electric Water Solenoid Valve 2 Way Zero Differential Pressure

voltage: AC220～240V AC110V AC24V 50/60Hz DC24V DC12V

interface size: 3/8＂～ 2＂

interface: G thread NPT thread Rc thread

working pressure: 0~10 bar

Cast Iron Electronic Solenoid Valve Low Voltage Water Valve Normally Closed

voltage: AC220～240V AC110V 50/60Hz 22VA DC24V DC12V 13W

interface type: flange

working pressure: 0.3~12 bar

options: Digital timer , LED light connector

Brass Electronic 3/4＂Water Solenoid Valve Direct Operated Two Way

voltage: AC220～240V AC110V 50/60Hz DC24/12V

interface size: 3/8＂～ 2＂

options: Es low power energy saving coil

working pressure: 0~10 bar

2 Inch Semi Direct Acting Brass Water Solenoid Valve Normally Open 24VDC

voltage: AC220～240V AC110V 50/60Hz DC24/12V

interface size: 3/8＂～ 2＂

options: Es low power energy saving coil

sealing material: NBR EPDM(-10～130℃) VITON(-10～120℃)

Energy Saving Pilot Operated Electric Water Valves DFD Series With Digital Timer

material: AC220～240V AC110V 50/60Hz 25VA DC24V DC12V 13W

interface size: 3/8＂～ 3＂

interface: digital timer, LED light connector

working pressure: ES low power energy saving coil（AC220V 3VA DC24V 3W）
