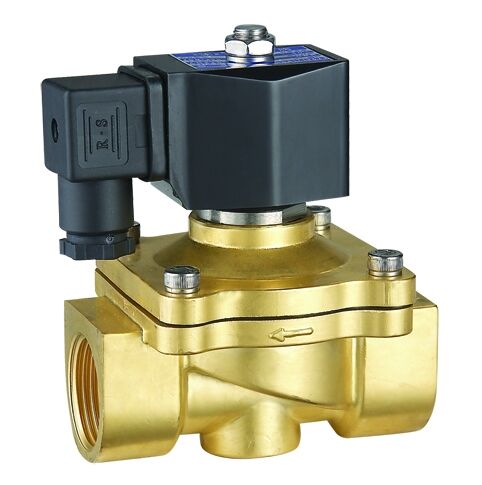

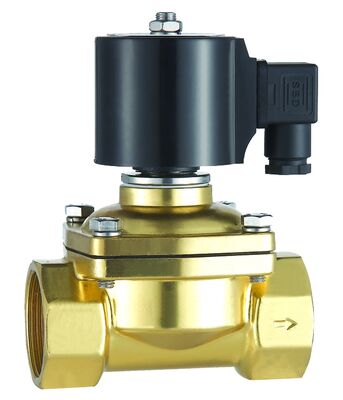

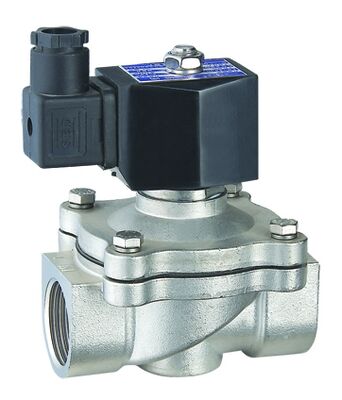

2W Series Brass Diaphragm Solenoid Valve Gas Media Base

Large Image : 2W Series Brass Diaphragm Solenoid Valve Gas Media Base

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	round star

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Structure:	Diaphragm	Type:	Other Valves
Application:	General	Customized Support:	OEM, ODM
Media:	Base	Power:	Solenoid
Temperature Of Media:	Medium Temperature	Warranty:	1 Year
Standard Or Nonstandard:	Standard
Highlight:	2W brass diaphragm solenoid valve , gas media solenoid valve , water solenoid valve with brass diaphragm

Product Description

working medium:water,liquid,air,light oil(viscosity≤20cst)

medium temperature:-5 ~ 80℃

working pressure:0 ~ 10bar (details see specification table)

working type:semi direct acting(NC)

Valvebody material:brass SS304

sealing material:NBR

interface:G thread NPT thread

voltage:AC220~240V AC 110V AC24V 50/60Hz DC24V DC12V IP65 H degree(iron seal coil: IP54 B degree)

DN10~25 AC 20VA DC 30W DN35~50 AC 45VA DC 31W

Options:

Rc thread sealing material: EPDM VITON VMQ(-10~130℃)

Digital timer LED light connector

Es low power energy saving coil( DN10~25 AC220 V4VA DC24V 4W DN35~50 AC220V 8VA DC24V 7W )

Lead wire iron seal coil
