Product Details:
Payment & Shipping Terms:
|
| Working Medium: | Water | Medium Temperature: | -5 ～ 80℃ |
|---|---|---|---|
| Working Pressure: | 0～8bar | Valvebody Material: | SS304 |
| Sealing Material: | NBR | Interface: | G Thread |
| Working Voltage: | 12V | ||
| High Light: | micro solenoid valve,miniature solenoid valves |
||

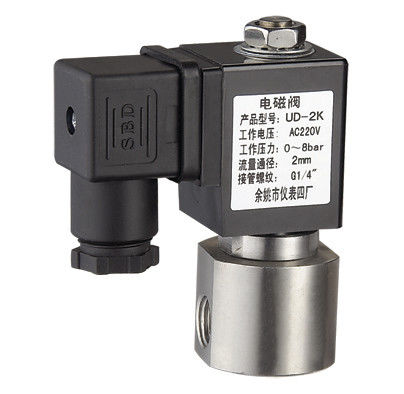

stainless steel miniature solenoid valve direct acting normally open NO dc24v 12v
Product Features:
Pilot structure, the spool are stainless steel pistons, piston rings will not be dead card impurities in the medium, high dynamic sealing performance, long life; piston valve chamber with the metal does not produce direct friction, the valve mounting direction unlimited; authoritarian coil , easily burned; for a long time to stop the action restarted, the action also sensitive; zero leakage; life of more than 100 million times.
UD-series solenoid valve specification table
| model |
interface size
|
Orifice size (mm) |
Cv
|
working pressure (bar) | dimension | valvebody material | Weight(Kg) | |||
| NC | NO |
length×width×height (mm) |
||||||||
| AC220V | DC24V | AC220V | DC24V | |||||||
| UD-2 |
1/8＂ 1/4＂ |
1.5 | 0.1 | 0 ～ 30 | 0 ～ 20 | 0 ～ 8 | 0 ～ 8 | φ36×75 | SS304 | 0.4 |
| 2.0 | 0.2 | 0 ～ 20 | 0 ～ 15 | 0 ～ 8 | 0 ～ 8 | φ36×75 | 0.4 | |||
| UD-3 | 3/8＂ | 3.5 | 0.25 | 0 ～ 10 | 0 ～ 8 | 0 ～ 3 | 0 ～ 3 | φ45×81 | 0.5 | |
| UD-C-10N | 3/8＂ | 10 | 3.2 | 0.3～ 10 | 0.3～5 | 0.1～13 | 0.1～13 | 45×31×86 | copper,SS | 0.4 |
