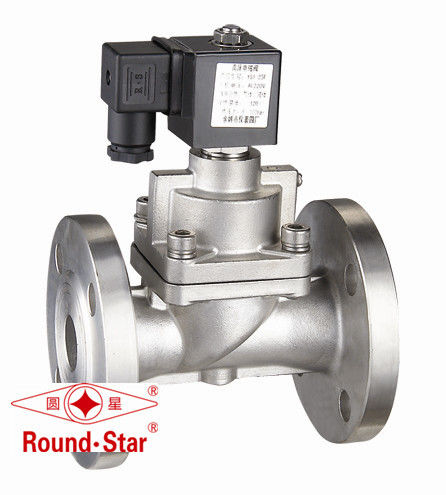

SS High Pressure Solenoid Valve Normally Closed , 40mm Solenoid Valve Pilot Operated

SS High Pressure Solenoid Valve Normally Closed , 40mm Solenoid Valve Pilot Operated
SS High Pressure Solenoid Valve Normally Closed , 40mm Solenoid Valve Pilot Operated

Large Image :  SS High Pressure Solenoid Valve Normally Closed , 40mm Solenoid Valve Pilot Operated

Product Details:
Place of Origin: CHINA (YUYAO CITY )
Brand Name: ROUND STAR
Certification: ISO CE ROHS
Model Number: YSI
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: USD
Packaging Details: carton pallet for exporting standard
Delivery Time: 3 working days~ 2 weeks
Payment Terms: T/T, Western Union
Supply Ability: consult
Detailed Product Description
Material: Stainless Steel Orifice Size: DN 15~50mm
Working Pressure: 6~100 Bar Sealing Material: PTFE
Interface Type: G Thread NPT Thread Medium: Water、liquid、air、light Oil(viscosity≤20cst)
High Light:

solenoid valve high pressure

,

high pressure air valve

YSI series 2-Way stainless steel pilot operated normally closed high pressure solenoid valve DN 15~50mm

high pressure solenoid valve Installation Precautions

1, should refer to the product before installation manual, meets your requirements.
2, the pipeline should be washed before using a clean, medium dirty filter should be installed to prevent impurities interfere with the normal operation of the solenoid valve.
3, the solenoid valve for a long time after the closure, easy to use should be emptying after coagulation; washable when then put away the parts according to the order of restitution installed.
4. solenoid valve is generally working, not reversed, the arrow is the direction of movement of the valve pipeline fluid must be consistent.
5, the solenoid valve should be back to work in freezing place a heat treatment, or set the insulation measures.
6, the solenoid valve is installed general body level, coil vertically upward, some products can be any installation, but the best vertical when conditions permit, in order to increase service life.
7, after the electromagnetic coil leads (connectors) connected, should confirm whether the firm, contact coupling electrical components should not shake loose will cause the solenoid valve does not work. Continuous production of solenoid valves to work, preferably bypass, easy maintenance, without affecting production.


working medium:water,liquid,air,light oil(viscosity≤20cst)
medium temperature:0 ~ 120 ℃
working pressure: 6 ~ 100bar
working type:pilot operated
valvebody material:SS304
sealing material:PTFE
interface:G thread NPT thread
Working voltage:AC220 ~ 240V AC110V 50/60Hz 28VA DC24 20W I P65 H degree voltage could be custom made
Options:
LED light connector ES low power energy saving coil(AC220V 4VA DC4W)
Rc thread





YSI-series(NC)specification table (use ES coil,power will be about 1/4 of using normal coil)

model

orifice size
( mm )

Interface sizeCvworking pressure(bar)

length×width
×height
( mm )

normal order code


weight
(Kg)

AC200VDC24V

Plastic seal
AC220V
G thread

YSI-15J151/2"4.86~1006~10080×55×140YSI-15J - AC220V1.1
YSI-20J203/4"7.66~1006~10090×60×153YSI-20J - AC220V1.6
YSI-25J251"126~1006~100100×68×162YSI-25J - AC220V2.1
YSI-32J3211/4"206~806~80110×80×170YSI-32J - AC220V2.6
YSI-40J4011/2"306~806~80130×90×185YSI-40J - AC220V3.7
YSI-50J502"486~806~80150×108×201YSI-50J - AC220V5.3


SS High Pressure Solenoid Valve Normally Closed , 40mm Solenoid Valve Pilot Operated 0


YSI-series flange(NC)high pressure solenoid valve dimension table

modelPN=2.5MPa GB/T9113.1-2000 flange connection dimension (mm)

weight
(Kg)

DNLDHKdCfn-φ
YSI—15JF151209517565461424-φ142.5
YSI—20JF2013010518875561624-φ143.5
YSI—25JF2514011521085651624-φ144.3
YSI—32JF32160140218100761824-φ186.4
YSI—40JF40170150232110841824-φ187.8
YSI—50JF50200165258125992024-φ1811.1


SS High Pressure Solenoid Valve Normally Closed , 40mm Solenoid Valve Pilot Operated 1

SS High Pressure Solenoid Valve Normally Closed , 40mm Solenoid Valve Pilot Operated 2


Options:
LED light connector, ES low power energy saving coil(AC220V 4VA DC 4W)
Rc thread



Founded in 1965, Yuyao No.4 Instrument Factory has been a professional manufacturer of solenoid valves and has enjoyed an excellent reputation through the past more than 50 years in China. With the introduction of foreign cutting-edge technology, and the sustained innovation and self-improving, the company has mastered the key technology and is keeping pioneer position in the field of fluid solenoid valve.
SS High Pressure Solenoid Valve Normally Closed , 40mm Solenoid Valve Pilot Operated 3
