Working Medium: | Water | Working Pressure: | 0 ~ 8bar (details See Specification Table) |
---|---|---|---|
Valve Body Material: | Brass、SS PA66 Cast Iron | Interface: | G Thread NPT Thread Flange Connection |
Working Voltage:: | AC220~240V AC110V 50/60Hz | Medium Temperature: | -5 ~ 60 ℃ |
Working Type: | Semi Direct Acting Pilot Operated (NC) | Sealing Material: | NBR |
High Light: | water fountain valve,50mm solenoid valve |

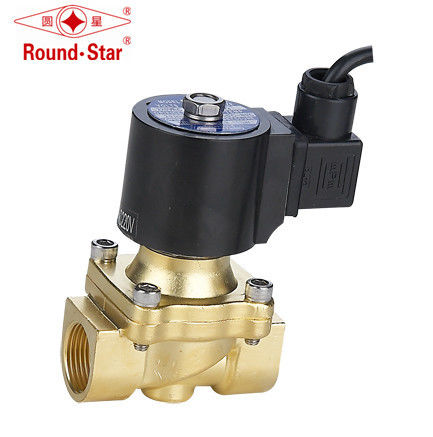

Brass Underwater Solenoid Valve , 40mm Solenoid Valve Waterproof
Brass material 1/2 inch ip68 water fountain waterproof solenoid valve
Media: Gas, Water, Air, Oil (below 20cst), Weak acid & alkali, Vacuum
Function type: Normally Closed (N/C), Normally Open (N/O)
Pressure: Normally Closed 10bar; Normally Open 6bar
Temperature: -5 ~80C
Mode of action: Direct acting IP68 water fountain waterproof soleniod valve
Body material: Brass
Sealing material: NBR,EPDM,Viton
Protection class: IP68
SLDF series(underwater)solenoid valve external drawing
SLDF series solenoid valve specification table
model | Orifice size( mm ) | interface size | Cv |
working pressure (bar) |
A×B×C ( mm ) |
normal order code
|
valve body material |
AC220V G thread Material brass
|
|||||||
SLDF-15 | 15 | 1/2" | 3.8 | 0 ~ 6 | 68×56×117 | SLDF-15-AC220V |
brass
SS304 |
SLDF-20 | 20 | 3/4" | 7.6 | 0 ~ 6 | 73×56×123 | SLDF-20-AC220V | |
SLDF-25 | 25 | 1" | 12 | 0 ~ 6 | 100×74×135 | SLDF-25-AC220V | |
SLDF-32 | 32 | 11/4" | 24 | 0 ~ 6 | 110×85×154 | SLDF-32-AC220V | |
SLDF-40 | 40 | 11/2" | 30 | 0 ~ 6 | 120×90×162 | SLDF-40-AC220V | |
SLDF-50 | 50 | 2" | 48 | 0 ~ 6 | 185×112×185 | SLDF-50-AC220V | |
SLDF-15SL | 15 | 1/2" | 3.8 | 0 ~ 6 | 76×68×107 | SLDF-15SL-AC220V | PA66 |
SLDF-20SL | 20 | 3/4" | 7.6 | 0 ~ 6 | 80×68×111 | SLDF-20SL-AC220V | |
SLDF-25SL | 25 | 1" | 12 | 0 ~ 6 | 107×82×117 | SLDF-25SL-AC220V | |
SLDF-65JF | 65 |
Flange connection |
53 | 0.3~8 | 256×185×318 | SLDF-65JF-AC220V | SS304 |
SLDF-80JF | 80 | 82 | 0.3~8 | 277×200×327 | SLDF-80JF-AC220V | ||
SLDF-100JF | 100 | 129 | 0.3~8 | 350×220×345 | SLDF-100JF-AC220V | ||
SLDF-150JF | 150 | 292 | 0.3~8 | 450×285×400 | SLDF-150JF-AC220V | ||
SLDF-65CF | 65 |
flange
connection |
53 | 0.3~8 | 258×185×330 | SLDF-65CF-AC220V | Cast iron |
SLDF-80CF | 80 | 82 | 0.3~8 | 280×200×330 | SLDF-80CF-AC220V | ||
SLDF-100CF | 100 | 128 | 0.3~8 | 354×220×390 | SLDF-100CF-AC220V | ||
SLDF-125CF | 125 | 222 | 0.3~8 | 430×250×470 | SLDF-125CF-AC220V | ||
SLDF-150CF | 150 | 292 | 0.3~8 | 454×285×480 | SLDF-150CF-AC220V | ||
SLDF-200CF | 200 | 513 | 0.3~8 | 573×340×590 | SLDF-200CF-AC220V |
SLDF flange series solenoid valve external dimension table
model | PN=1.6MPa GB/T9113.1-2000 flange connection dimension (mm) | ||||||||
DN | L | D | H | K | d | C | f | n-φ | |
SLDF-65JF | 65 | 256 | 185 | 318 | 145 | 118 | 20 | 3 | 4-φ18 |
SLDF-80JF | 80 | 277 | 200 | 327 | 160 | 132 | 20 | 3 | 8-φ18 |
SLDF-100JF | 100 | 350 | 220 | 345 | 180 | 156 | 22 | 3 | 8-φ18 |
SLDF-150JF | 150 | 450 | 285 | 400 | 240 | 211 | 24 | 3 | 8-φ22 |
SLDF-65CF | 65 | 258 | 185 | 330 | 145 | 118 | 20 | 3 | 4-φ18 |
SLDF-80CF | 80 | 280 | 200 | 330 | 160 | 132 | 20 | 3 | 8-φ18 |
SLDF-100CF | 100 | 354 | 220 | 390 | 180 | 156 | 22 | 3 | 8-φ18 |
SLDF-125CF | 125 | 430 | 250 | 470 | 210 | 186 | 22 | 3 | 8-φ18 |
SLDF-150CF | 150 | 454 | 285 | 480 | 240 | 211 | 24 | 3 | 8-φ22 |
SLDF-200CF | 200 | 573 | 340 | 590 | 295 | 266 | 24 | 3 | 12-φ22 |
