Product Details:
Payment & Shipping Terms:
|
| Working Medium: | Water、liquid、air、light Oil（viscosity≤20cst） | Medium Temperature: | -5 ～ 80℃ |
|---|---|---|---|
| Working Pressure: | 0 ～ 8 Bar | Working Type: | Direct Acting Pilot Operated |
| Valve Body Material: | Brass | Sealing Material: | NBR (medium Temperature-5～80℃) |
| Interface: | G Thread NPT Thread | Working Voltage: | AC220/110V 50/60Hz 6VA DC24/12V 6W |
| High Light: | brass solenoid valve,low pressure solenoid valve |
||

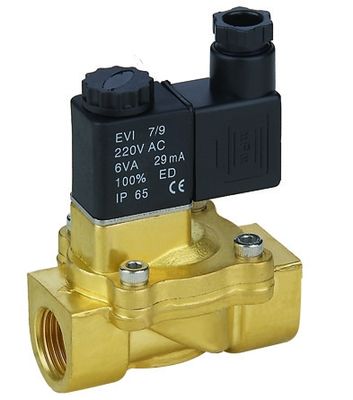

Water Pilot Medium Pressure Valve Low Power Diaphragm Solenoid Valve 1 Inch
RSV series 2-waylow power(diaphragm)specification table
| model | Orifice size(mm) | Interface size | Cv | pressurebar | A× B ×C | Weight Kg | note |
| RSV-025-06 | 2.5 | 1/8＂ | 0.2 | 0～8 | 30×22×62 | 0.22 | direct acting |
| RSV-025-08 | 2.5 | 1/4＂ | 0.2 | 0～8 | 30×22×62 | 0.22 | |
| RSV-10 | 13 | 3/8＂ | 3.5 | 0.3～8 | 72×48×100 | 0.62 | pilot operated |
| RSV-15 | 13 | 1/2＂ | 3.5 | 0.3～8 | 72×48×100 | 0.6 | |
| RSV-20 | 25 | 3/4＂ | 20 | 0.3～8 | 100×70×105 | 1.1 | |
| RSV-25 | 25 | 1＂ | 20 | 0.3～8 | 100×70×105 | 1.0 |
