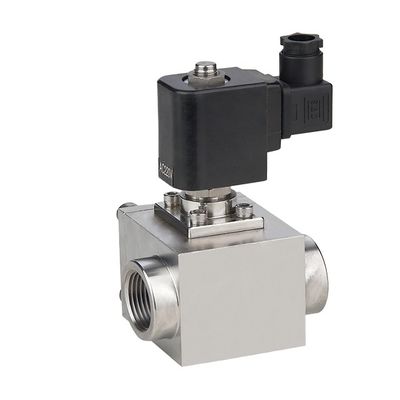

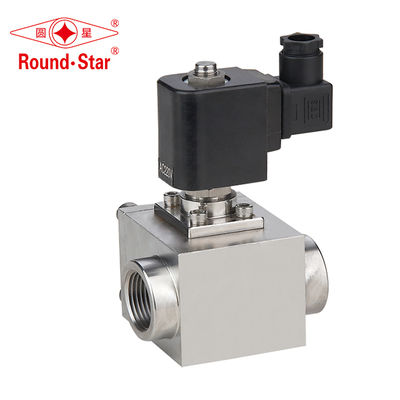

SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty

SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty

Large Image :  SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Round Star
Model Number: YSE-100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $59.99-99.99
Contact Now
Detailed Product Description
Port Size: G1/4"~1" Structure: Pilot
Max Pressure: 25MPA Media: Gas
Temperature Range: -10~80℃ Working Pressure: 0-300bar
Valve Material: SS304 Sealing Material: PTFE
Interface: G Thread, NPT Thread Working Voltage: AC220V/AC110V 50/60Hz8VA, DC24V6W
Coil Type: Nass Coil From Germany IP Rating: IP65
H Degree: Yes Power Consumption: 8VA (AC), 6W (DC)
Working Type: Pilot Operated (NC)
Highlight:

1.6MPA High Pressure Solenoid Valve

,

G1/4"~1" Solenoid Valve

,

3 Years Warranty Solenoid Valve

YSE-100 SS304 Nass Coil High Pressure Solenoid Valve 1.6MPA
Product Description

High performance solenoid valve designed for demanding industrial applications.

  • Medium: Steam, water
  • Type: Normally closed (N/C)
  • Material: Stainless Steel (SS304)
  • High quality Nass coil from Germany
  • Sealer: PTFE for superior durability
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty 0
Technical Specifications
Working medium Liquid, gas
Fluid temperature -10~80℃
Working type Pilot operated (NC)
Working pressure 0-300bar
Valve body material SS304
Sealing material PTFE
Interface G thread, NPT thread
Working voltage ES low temp coil AC220V/AC110V 50/60Hz8VA, DC24V6W, IP65, H degree (Other voltages customizable)
Certifications
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty 1 SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty 2
Manufacturing Excellence

Our production facilities ensure the highest quality standards:

SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty 3 SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty 4
Quality Assurance

Each solenoid valve undergoes rigorous testing:

SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty 5
Advanced Production Technology

We utilize state-of-the-art manufacturing equipment:

SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty 6 SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty 7
Material Verification

All metal components are verified using German spectrometer technology:

SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty 8
Packaging & Delivery

Secure packaging solutions to protect your valves during transit:

SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty 9 SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty 10

Packaging options include:

  • English neutral packaging
  • Custom logo options available
  • Fumigated wooden cases for shipments over 40kg
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty 11
Have Questions?

Our technical team is ready to assist with any inquiries about our solenoid valves.
